MAX4886ETO+ - Analog Devices

Description: Maxim MAX4886ETO+, Analogue SPDT Switch Quad 2:1, 3 → 3.6 V, 42-Pin TQFN

Download MAX4886ETO+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

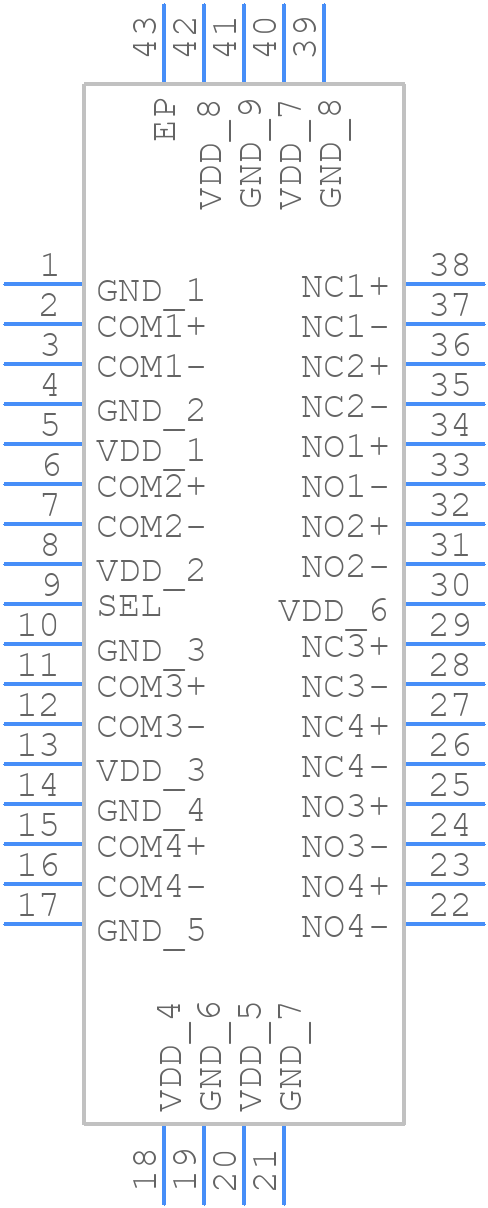

MAX4886ETO+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4886ETO+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T423590+1
click to zoom
3D Models
MAX4886ETO+ - Analog Devices - 3D model - Quad Flat No-Lead - T423590+1
click to zoom

MAX4886ETO+ Details

  • Manufacturer Part Number:

    MAX4886ETO+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    42-LFCSP-3.5X9X0.75

  • Package Description:

    9 X 3.5 MM, 0.80 MM HEIGHT, LEAD FREE, TQFN-42

  • Pin Count:

    42

  • Manufacturer Package Code:

    42-LFCSP-3.5X9X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-05-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    AUDIO/VIDEO SWITCH

  • JESD-30 Code:

    R-XQCC-N42

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    42

  • Off-state Isolation-Nom:

    58 dB

  • On-state Resistance Match-Nom:

    0.28 Ω

  • On-state Resistance-Max (Ron):

    11 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC42,.14X.35,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.12 A

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

MAX4886ETO+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4886ETO+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a shielded enclosure and keeping the device away from high-frequency sources can help minimize EMI.
  • The MAX4886ETO+ requires a single 3.3V or 5V power supply. Ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The MAX4886ETO+ can support data rates up to 100 Mbps. The maximum cable length depends on the data rate and cable quality. As a general guideline, the maximum cable length is approximately 100 meters at 100 Mbps, 200 meters at 10 Mbps, and 500 meters at 1 Mbps.
  • To troubleshoot issues with the MAX4886ETO+, start by checking the power supply and ensuring that the device is properly powered. Verify that the transmit and receive pins are correctly connected and that the signal levels are within the specified range. Use an oscilloscope to check the signal waveforms and ensure that they are not distorted or clipped.
  • The MAX4886ETO+ has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink if the device will be operating in high-temperature environments. Follow proper PCB design and layout guidelines to minimize thermal resistance.
