MAX4899AEETE+ - Analog Devices

Description: USB 2.0 High-Speed, Fault-Tolerant 3:1, 4:1 Multiplexers

Download MAX4899AEETE+ Model

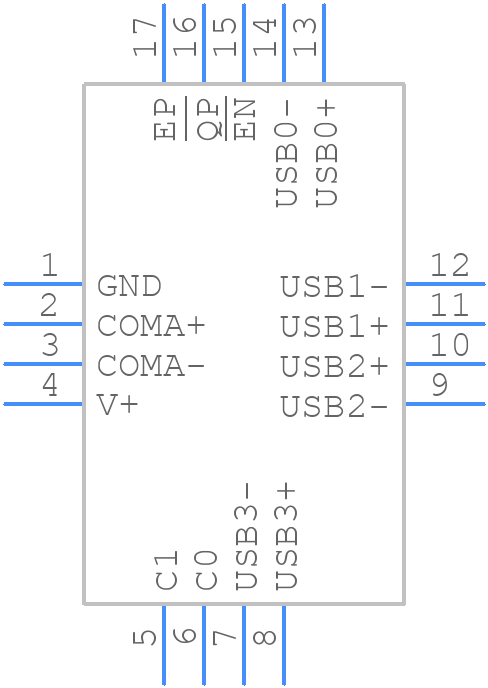

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX4899AEETE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T-1633-4
click to zoom

MAX4899AEETE+ Details

  • Manufacturer Part Number:

    MAX4899AEETE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, 0.80 MM HEIGHT, LEAD FREE, MO-220WEED-2, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2006-08-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    45 dB

  • On-state Resistance Match-Nom:

    0.5 Ω

  • On-state Resistance-Max (Ron):

    12 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.12 A

  • Supply Current-Max (Isup):

    0.6 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    3 ns

  • Switch-on Time-Max:

    2800 ns

  • Switching:

    MAKE-BEFORE-BREAK

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX4899AEETE+ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX4899AEETE+. Ensure that the device is placed near the signal sources, and use a solid ground plane to reduce noise. Keep the input and output traces short and separate to minimize crosstalk. Use a 4-layer PCB with a dedicated power plane and a solid ground plane for optimal performance.
  • The MAX4899AEETE+ has a thermal pad that must be connected to a solid ground plane or a thermal relief pattern to dissipate heat. Ensure good airflow around the device, and consider using a heat sink or thermal interface material if the device is expected to operate in high-temperature environments.
  • The MAX4899AEETE+ requires a 50Ω input termination to match the impedance of the device. For the output, use a 50Ω back-termination to prevent signal reflections. You can also use a 100Ω differential termination for the output if you're driving a differential load.
  • The MAX4899AEETE+ has a programmable data rate. You can configure the device using the RATE pin, which sets the data rate to 1.5 Gbps, 3 Gbps, or 6 Gbps. You can also use the DE pin to enable or disable the device. Refer to the datasheet for the specific pin configurations for your desired data rate.
  • The MAX4899AEETE+ requires a specific power sequencing to prevent latch-up or damage. Ensure that the VCC supply is powered up before the VEE supply, and that the VCC supply is powered down before the VEE supply. This sequencing is critical to prevent damage to the device.
