MAX49017ATA/VY+T - Analog Devices

Description: Analog Comparators Dual nanoPower Comparator with Built-In Reference

Download MAX49017ATA/VY+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

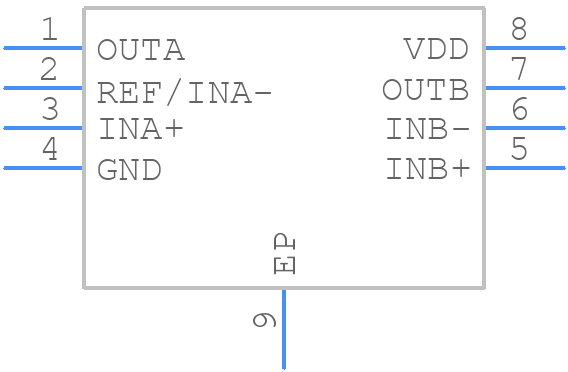

MAX49017ATA/VY+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX49017ATA/VY+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822Y+3C
click to zoom
3D Models
MAX49017ATA/VY+T - Analog Devices - 3D model - Small Outline No-lead - T822Y+3C
click to zoom

MAX49017ATA/VY+T Details

  • Manufacturer Part Number:

    MAX49017ATA/VY+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP_SS-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP_SS-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-09-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Bias Current-Max (IIB) @25C:

    0.005 µA

  • Input Offset Voltage-Max:

    14000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    9900 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.00255 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX49017ATA/VY+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX49017 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and loops. It's also recommended to place the device close to the signal sources and use shielding to reduce EMI.
  • The MAX49017 requires a stable power supply with minimal noise and ripple. Use a high-quality voltage regulator and decouple the power pins with 0.1uF and 10uF capacitors. Additionally, use a 10nF capacitor to decouple the VCC pin from the analog ground.
  • The MAX49017 can support data rates up to 100Mbps, but the actual data rate depends on the specific application, cable length, and signal quality. It's recommended to consult the datasheet and application notes for specific guidance.
  • To troubleshoot issues with the MAX49017, use an oscilloscope to analyze the signal waveforms and check for noise, jitter, and distortion. Verify that the power supply is stable and the device is properly decoupled. Also, check the signal termination and impedance matching to ensure signal integrity.
  • The MAX49017 is rated for operation up to 125°C, but it's essential to consider the device's thermal characteristics and ensure proper heat dissipation. Use a heat sink or thermal pad to dissipate heat, and consult the datasheet for specific guidance on thermal management.
