MAX4906ELB+T - Analog Devices

Description: USB Switch ICs High-/Full-Speed USB 2.0 Switches

Download MAX4906ELB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

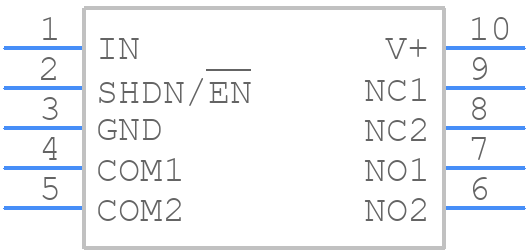

MAX4906ELB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4906ELB+T - Analog Devices PCB footprint - Other - Other - MAX4906ELB+T-2
click to zoom
3D Models
MAX4906ELB+T - Analog Devices - 3D model - Other - MAX4906ELB+T-2
click to zoom

MAX4906ELB+T Details

  • Manufacturer Part Number:

    MAX4906ELB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    10-LFCSP-2X2X0.75

  • Package Description:

    HVSON, SOLCC10,.08,16

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-2X2X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2006-02-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    S-XDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    26 dB

  • On-state Resistance Match-Nom:

    0.7 Ω

  • On-state Resistance-Max (Ron):

    8 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.12 A

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    30 ns

  • Switch-on Time-Max:

    60 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold/Nickel (Au/Ni)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX4906ELB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4906ELB+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a shielded enclosure and minimizing the length of the input and output traces can help reduce EMI and noise.
  • To ensure proper power and decoupling, use a high-quality power supply with low noise and ripple, and decouple the device with a 0.1uF ceramic capacitor between the VCC and GND pins. Additionally, use a 10uF electrolytic capacitor between the VCC and GND pins for further decoupling.
  • The MAX4906ELB+T has an operating temperature range of -40°C to +125°C, but it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot common issues with the MAX4906ELB+T, start by checking the power supply and decoupling, then verify the input and output connections and signal integrity. Use an oscilloscope to check for oscillations or noise on the output, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The MAX4906ELB+T is a high-reliability device, but it's essential to follow proper design and manufacturing guidelines to ensure the device meets the required safety and reliability standards. Consult the datasheet and relevant industry standards, such as IEC 61508 or ISO 26262, for guidance on using the MAX4906ELB+T in safety-critical applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4906ELB+T Overview

Use the download button to access the MAX4906ELB+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX49, or try a keyword search, such as Multiplexers or Switches
