MAX4947ETG+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4947ETG+ - Analogue Switch, Data Switch, 3 Channels, DPDT, 5.5 ohm, 1.8V to 5.5V, TQFN, 24 Pins

Download MAX4947ETG+ Model
Schematic

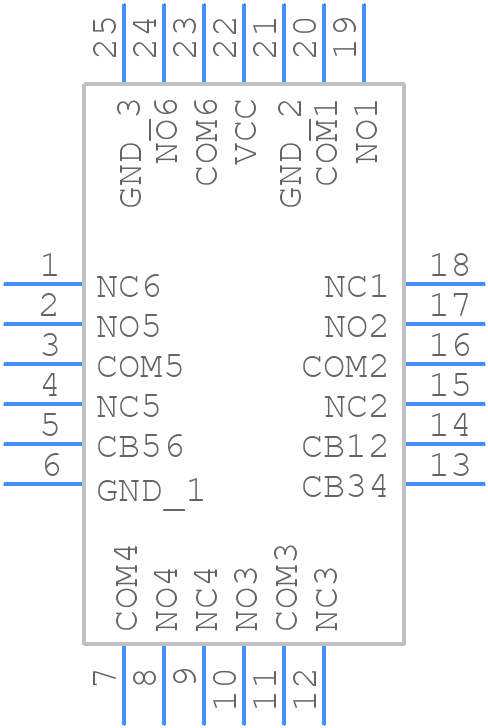

symbols
