MAX4952BCTP+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4952BCTP+ - Specialized Interface, SAS/SATA, Data Storage, Servers, 3 V, 3.6 V, TQFN, 20 Pins

Download MAX4952BCTP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

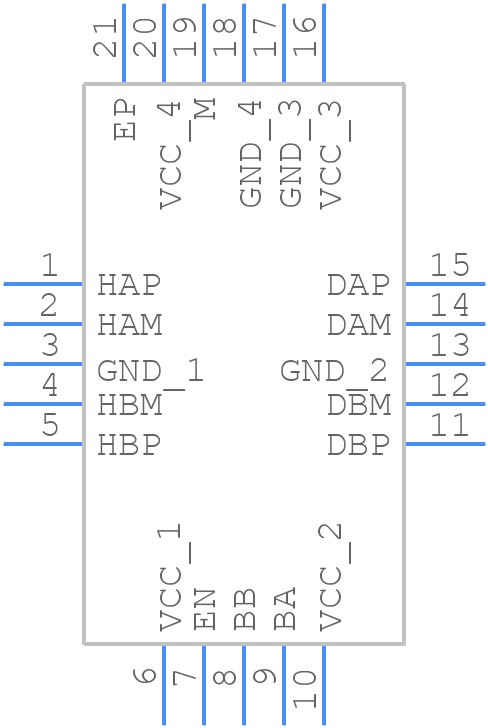

MAX4952BCTP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4952BCTP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2044+1
click to zoom
3D Models
MAX4952BCTP+ - Analog Devices - 3D model - Quad Flat No-Lead - T2044+1
click to zoom

MAX4952BCTP+ Details

  • Manufacturer Part Number:

    MAX4952BCTP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-4X4X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2010-02-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    0.9 V

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    130 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX4952BCTP+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX4952BCTP+ can be found in the MAX4952 evaluation kit documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet to ensure proper layout and thermal management.
  • To optimize the performance of the MAX4952BCTP+, it's essential to carefully review the datasheet and application notes. Additionally, Analog Devices provides a range of resources, including simulation models, evaluation kits, and application notes, to help engineers optimize the device's performance in their specific application.
  • The MAX4952BCTP+ has a high-power density, and proper thermal management is crucial to ensure reliable operation. The datasheet provides thermal resistance values and recommended thermal management techniques, such as using thermal vias, heat sinks, and thermal interface materials. Engineers should also consider the device's power dissipation and junction temperature to ensure safe operation.
  • The MAX4952BCTP+ is a commercial-grade device, but Analog Devices offers industrial-grade and automotive-grade versions of the device, such as the MAX4952AUTP+ and MAX4952ICTP+, which are designed for high-reliability and high-temperature applications. Engineers should review the specific device's datasheet and consult with Analog Devices' support team to determine the best device for their application.
  • Analog Devices provides a range of resources to help engineers troubleshoot issues with the MAX4952BCTP+, including application notes, FAQs, and a support forum. Engineers can also consult the datasheet and evaluation kit documentation for troubleshooting guidance. Additionally, Analog Devices' support team is available to provide assistance and guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4952BCTP+ Overview

Use the download button to access the MAX4952BCTP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX49, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
