MAX49925XATB+T - Analog Devices

Description: Bidirectional, Wide Positive and Negative Sensing Range Current-Sense Amplifier with Fast PWM Rejection, 300 kHz, 3.5 µA, 5 µV, 5mA, -40°C ~ 125°C

Download MAX49925XATB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

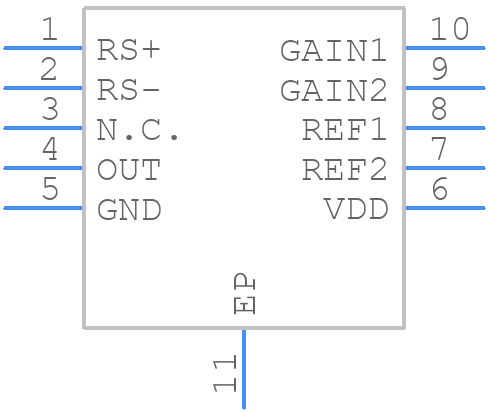

Symbol
MAX49925XATB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX49925XATB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1033+1C
click to zoom
3D Models
MAX49925XATB+T - Analog Devices - 3D model - Small Outline No-lead - T1033+1C
click to zoom

MAX49925XATB+T Details

  • Manufacturer Part Number:

    MAX49925XATB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2023-02-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPEN-LOOP

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    6 µA

  • Bias Current-Max (IIB) @25C:

    0.3 µA

  • Common-mode Reject Ratio-Min:

    120 dB

  • Common-mode Reject Ratio-Nom:

    140 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    1.5 V/us

  • Supply Current-Max:

    7 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    3 mm

MAX49925XATB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX49925XATB+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by VDD. Also, ensure that the input voltage is within the recommended range, and that the device is properly decoupled.
  • The MAX49925XATB+T has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX49925XATB+T, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly powered and decoupled. Use an oscilloscope to check for oscillations or noise on the output. Also, check the PCB layout and ensure that it meets the recommended layout guidelines.
  • Yes, the MAX49925XATB+T is suitable for high-reliability and safety-critical applications. It has a high level of integration, which reduces the number of external components and increases reliability. Additionally, it has built-in protection features such as overvoltage protection and thermal shutdown.
