MAX5035DASA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX5035DASA+T - DC-DC Switching Buck (Step Down) Regulator, Adj., 7.5V-76Vin, 1.25V-13.2V/1A out, 125 kHz, NSOIC-8

Download MAX5035DASA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

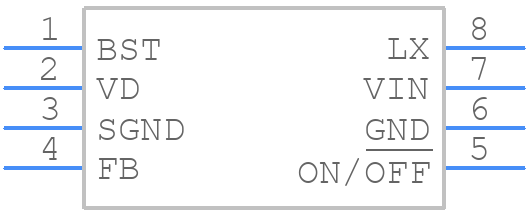

Symbol
MAX5035DASA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5035DASA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0041A
click to zoom
3D Models
MAX5035DASA+T - Analog Devices - 3D model - Small Outline Packages - 21-0041A
click to zoom

MAX5035DASA+T Details

  • Manufacturer Part Number:

    MAX5035DASA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-11-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    76 V

  • Input Voltage-Min:

    7.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    137 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX5035DASA+T Frequently Asked Questions (FAQs)

  • The MAX5035DASA+T requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces short and separate. Additionally, it is recommended to use a 10uF ceramic capacitor between the VIN pin and GND to filter out high-frequency noise.
  • To ensure stability, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the input voltage should be well-regulated and free of noise. It is also recommended to add a 1uF ceramic capacitor between the FB pin and GND to improve stability.
  • The MAX5035DASA+T can handle a maximum input voltage of 28V. However, it is recommended to operate the device within the recommended input voltage range of 4.5V to 24V to ensure optimal performance and reliability.
  • The MAX5035DASA+T is rated for operation up to 125°C. However, it is recommended to derate the output current and input voltage at high temperatures to ensure reliability and prevent overheating. It is also recommended to use a heat sink or thermal pad to dissipate heat.
  • To troubleshoot issues with the MAX5035DASA+T, it is recommended to check the input voltage, output voltage, and output current using an oscilloscope or multimeter. Check for any signs of overheating, such as excessive temperature or burning smells. Also, check the layout and placement of the device to ensure it is properly connected and not subject to noise or interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5035DASA+T Overview

Use the download button to access the MAX5035DASA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX50, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
