MAX505BCNG+ - Analog Devices

Description: MAX505BCNG+, 8 bit-Bit DAC Quad Parallel, 24-Pin PDIP

Download MAX505BCNG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

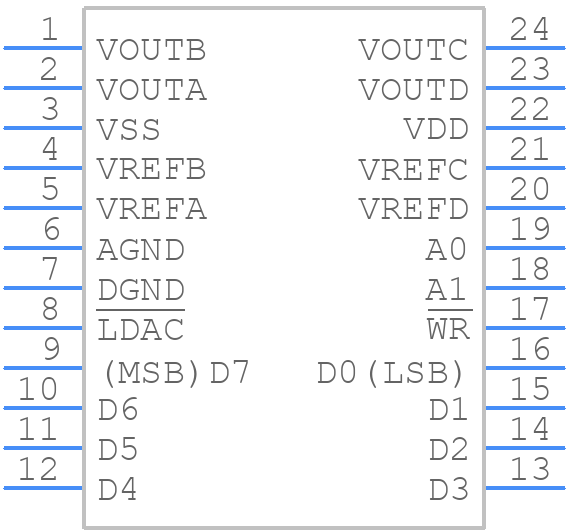

MAX505BCNG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

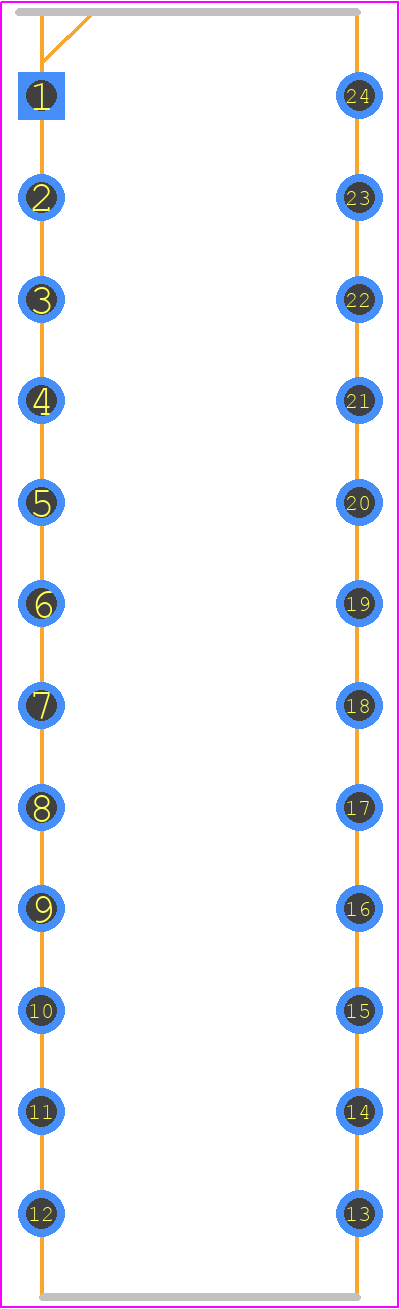

MAX505BCNG+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 24 PDIP 300mil
click to zoom
3D Models
MAX505BCNG+ - Analog Devices - 3D model - Dual-In-Line Packages - 24 PDIP 300mil
click to zoom

MAX505BCNG+ Details

  • Manufacturer Part Number:

    MAX505BCNG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-PDIP-300_MIL

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    30.545 mm

  • Linearity Error-Max (EL):

    0.0214%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5.5 V

  • Number of Bits:

    8

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX505BCNG+ Frequently Asked Questions (FAQs)

  • To minimize noise and ensure optimal performance, it's recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and use a solid ground plane. Additionally, keep the input and output traces short and away from each other, and use a low-ESR capacitor for the VCC bypass.
  • To handle thermal considerations, ensure good airflow around the device, use a heat sink if necessary, and follow the recommended PCB layout guidelines. Also, consider using a thermally conductive material for the PCB and ensure that the device is not exposed to extreme temperatures.
  • The recommended input voltage range for the MAX505BCNG+ is 4.5V to 5.5V. The output voltage is regulated to 5V ±2% for input voltages within this range. However, the output voltage may deviate from this range if the input voltage is outside the recommended range.
  • To ensure proper power-up and power-down, follow the recommended power-up sequence, which is to apply the input voltage before enabling the output. During power-down, disable the output before removing the input voltage. Also, ensure that the input voltage is stable and within the recommended range before enabling the output.
  • The MAX505BCNG+ is commonly used in applications requiring a low-dropout, high-current, and low-noise voltage regulator, such as in industrial control systems, medical devices, and high-reliability systems. It compares favorably to other similar devices in terms of its high current capability, low dropout voltage, and high power-supply rejection ratio (PSRR).
