MAX508BCPP+ - Analog Devices

Description: Maxim MAX508BCPP+, 12 bit Parallel DAC, 20-Pin PDIP

Download MAX508BCPP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

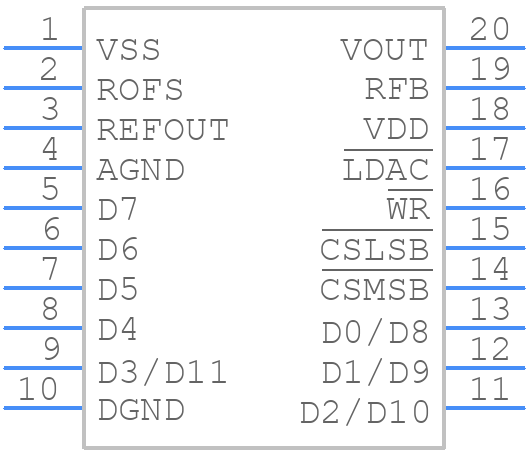

MAX508BCPP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

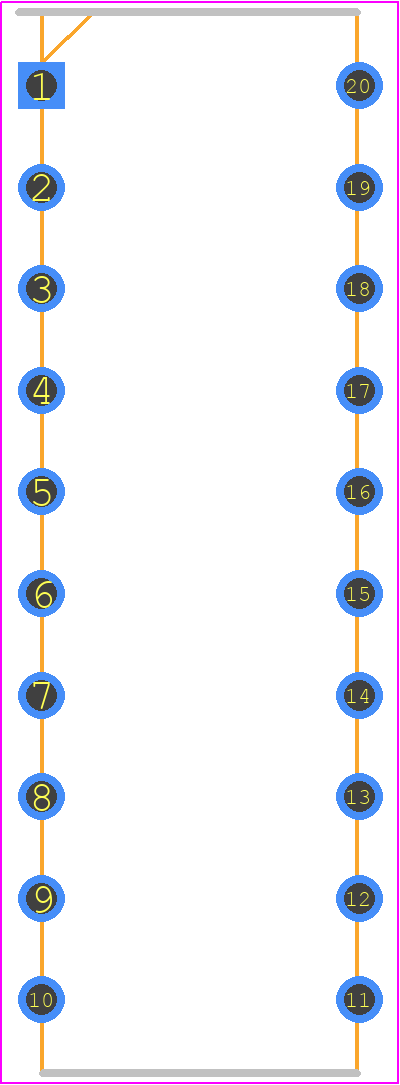

MAX508BCPP+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - MAX508
click to zoom
3D Models
MAX508BCPP+ - Analog Devices - 3D model - Dual-In-Line Packages - MAX508
click to zoom

MAX508BCPP+ Details

  • Manufacturer Part Number:

    MAX508BCPP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-PDIP-300_MIL

  • Package Description:

    PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2001-04-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    26.16 mm

  • Linearity Error-Max (EL):

    0.024%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Settling Time-Max:

    5 µs

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX508BCPP+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX508BCPP+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to place it as close as possible to the device.
  • To ensure stability, make sure to follow the recommended output filter configuration and component values, and ensure that the output capacitor is properly sized and placed. Additionally, check that the input voltage is within the recommended range and that the device is properly decoupled from the power supply.
  • The maximum output current of the MAX508BCPP+ is 1A. However, it's recommended to derate the output current based on the ambient temperature and the desired output voltage to ensure reliable operation.
  • The MAX508BCPP+ is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's recommended to consult the datasheet and application notes for guidance on using the device in high-temperature environments.
  • To troubleshoot issues with the MAX508BCPP+, start by checking the input voltage, output voltage, and output current to ensure they are within the recommended ranges. Check the device's thermal performance and ensure that it is properly heat-sinked. Use an oscilloscope to check for oscillations or noise on the output, and consult the datasheet and application notes for guidance on troubleshooting specific issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX508BCPP+ Overview

Use the download button to access the MAX508BCPP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX50, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
