MAX5113GWX+T - Analog Devices

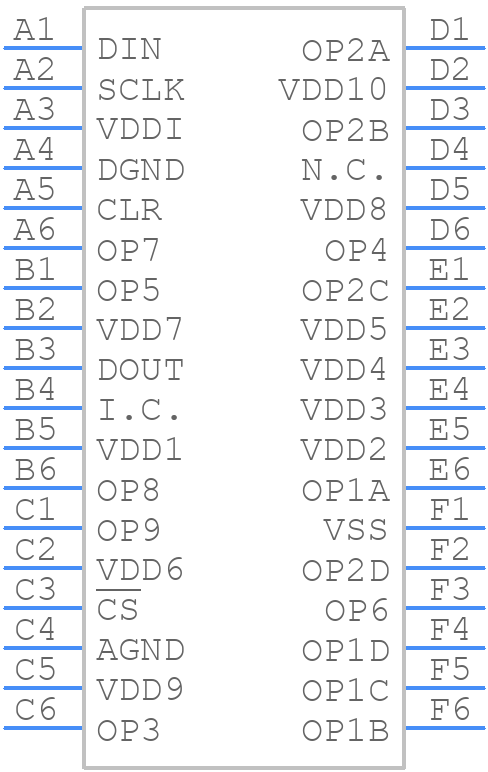

MAX5113GWX+T Details

• Manufacturer Part Number:

  MAX5113GWX+T

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  36-WLCSP-N/A

• Package Description:

  WLP-36

• Pin Count:

  36

• Manufacturer Package Code:

  36-WLCSP-N/A

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.40

• Date Of Intro:

  2012-07-13

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog Output Voltage-Max:

  2.3 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY

• Input Format:

  SERIAL

• JESD-30 Code:

  S-XBGA-B36

• JESD-609 Code:

  e1

• Length:

  3.065 mm

• Linearity Error-Max (EL):

  0.04882%

• Moisture Sensitivity Level:

  1

• Negative Supply Voltage-Nom:

  -5.2 V

• Number of Bits:

  14

• Number of Functions:

  1

• Number of Terminals:

  36

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA36,6X6,20

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.69 mm

• Settling Time-Nom (tstl):

  15 µs

• Supply Current-Max:

  0.6 mA

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.065 mm
