MAX517BCPA+ - Analog Devices

Description: MAX517BCPA+, 8-Bit 8 Bit DAC I2C, 8-Pin PDIP

Download MAX517BCPA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

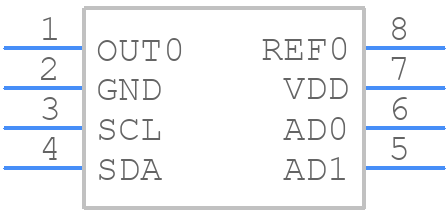

Symbol
MAX517BCPA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX517BCPA+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-8
click to zoom
3D Models
MAX517BCPA+ - Analog Devices - 3D model - Dual-In-Line Packages - DIP-8
click to zoom

MAX517BCPA+ Details

  • Manufacturer Part Number:

    MAX517BCPA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-PDIP-300_MIL

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1995-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.375 mm

  • Linearity Error-Max (EL):

    0.5859%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    4.572 mm

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX517BCPA+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Additionally, use a low-ESR capacitor for the VCC bypass and place it close to the device.
  • To ensure accuracy and linearity, it's essential to follow the recommended operating conditions, including supply voltage, temperature range, and output load. Additionally, consider using external calibration or trimming to compensate for any deviations.
  • The maximum allowable output current of the MAX517BCPA+ is 10mA. Exceeding this limit can cause the device to overheat, leading to reduced accuracy, increased noise, and potentially even damage. Ensure that the output current is within the specified limit to maintain optimal performance.
  • The MAX517BCPA+ has a built-in POR and BOR feature that resets the device during power-up or brown-out conditions. To handle these features, ensure that the power supply is stable and within the recommended range, and consider adding external circuitry to debounce the reset signal if necessary.
  • The MAX517BCPA+ can be programmed using a 3-wire serial interface (SCL, SDA, and CS). Use a microcontroller or other digital interface to send the required programming commands and data to the device, following the protocol outlined in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX517BCPA+ Overview

Use the download button to access the MAX517BCPA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX51, or try a keyword search, such as Digital to Analog Converters
