MAX5214GUA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX5214GUA+ - DAC, 14BIT, UMAX-8

Download MAX5214GUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

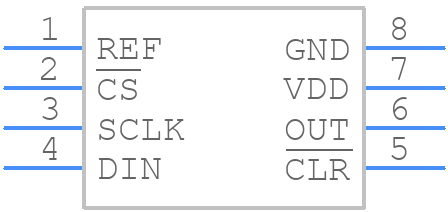

MAX5214GUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5214GUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0036
click to zoom
3D Models
MAX5214GUA+ - Analog Devices - 3D model - Small Outline Packages - 21-0036
click to zoom

MAX5214GUA+ Details

  • Manufacturer Part Number:

    MAX5214GUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2011-01-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    SSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    14 µs

  • Supply Current-Max:

    0.08 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX5214GUA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5214GUA+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is also recommended.
  • To ensure accurate voltage measurement, it's essential to use a high-impedance input source, minimize noise and interference, and use a low-noise, low-impedance analog ground plane. Additionally, calibrate the device using a known voltage reference and ensure that the input voltage is within the specified range.
  • The maximum allowed input voltage for the MAX5214GUA+ is 36V, but it's recommended to operate the device within the specified input voltage range of 4.5V to 30V to ensure accurate measurements and prevent damage to the device.
  • The MAX5214GUA+ has built-in overvoltage protection up to 36V, but it's still recommended to add external overvoltage protection circuitry to prevent damage from high-voltage transients or faults. A voltage clamp or a zener diode can be used to limit the input voltage to a safe level.
  • The recommended power-up sequence for the MAX5214GUA+ involves powering up the analog supply (VCC) before the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper device operation.
