MAX5215GUA+ - Analog Devices

Description: Digital to Analog Converters - DAC 14 BIT LOW NOISE VERSION

Download MAX5215GUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

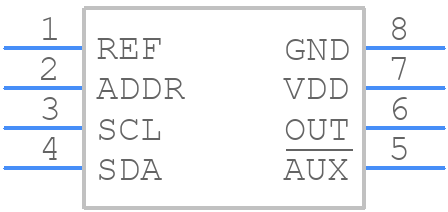

MAX5215GUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5215GUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8ld sop-+-
click to zoom
3D Models
MAX5215GUA+ - Analog Devices - 3D model - Small Outline Packages - 8ld sop-+-
click to zoom

MAX5215GUA+ Details

  • Manufacturer Part Number:

    MAX5215GUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2012-11-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    0.08 mA

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX5215GUA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5215GUA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the MAX5215GUA+ in noisy environments, use a low-pass filter on the input signals, use a shielded cable for the analog input signals, and consider using a common-mode choke on the power supply lines. Additionally, ensure that the device is properly decoupled and that the power supply is clean and well-regulated.
  • The maximum operating temperature range for the MAX5215GUA+ is -40°C to +125°C. However, the device's performance may degrade at temperatures above 85°C, and it's recommended to derate the device's performance accordingly.
  • Yes, the MAX5215GUA+ can be used in a 3.3V system. The device's digital supply voltage (VDD) can be operated from 2.7V to 5.5V, and the analog supply voltage (AVDD) can be operated from 4.5V to 5.5V. However, the device's performance may be affected at lower supply voltages, and it's recommended to consult the datasheet for specific performance characteristics.
  • Common issues with the MAX5215GUA+ include incorrect pin connections, inadequate power supply decoupling, and noise coupling into the analog input signals. To troubleshoot these issues, use a logic analyzer or oscilloscope to verify the digital signals, check the power supply voltage and decoupling, and use a spectrum analyzer to verify the noise floor on the analog input signals.
