MAX5216BGUA+T - Analog Devices

Description: Digital to Analog Converters - DAC 16-Bit, Low-Power, High-Performance, Buffered Single DAC

Download MAX5216BGUA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

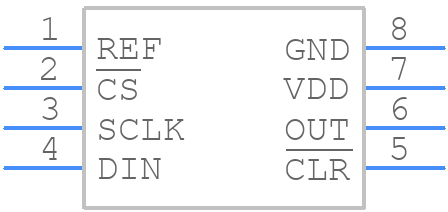

MAX5216BGUA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5216BGUA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8+3
click to zoom
3D Models
MAX5216BGUA+T - Analog Devices - 3D model - Small Outline Packages - U8+3
click to zoom

MAX5216BGUA+T Details

  • Manufacturer Part Number:

    MAX5216BGUA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    UMAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2011-01-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.3 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    18 µs

  • Supply Current-Max:

    0.08 mA

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX5216BGUA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5216BGUA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input traces as short as possible.
  • To ensure the accuracy of the MAX5216BGUA+T's analog-to-digital conversion, it's essential to provide a clean and stable power supply, use a high-quality reference voltage, and minimize noise and interference on the analog input signals. Additionally, proper calibration and trimming of the device can also improve accuracy.
  • The MAX5216BGUA+T can handle clock frequencies up to 50 MHz. However, the actual clock frequency limit may depend on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for more information.
  • The MAX5216BGUA+T is rated for operation in industrial temperature ranges (-40°C to +85°C) and can tolerate some level of humidity. However, it's essential to follow proper design and assembly practices to ensure the device's reliability in harsh environments. Consult the datasheet and application notes for more information.
  • To troubleshoot issues with the MAX5216BGUA+T, start by checking the power supply and clock signal quality, ensuring that the device is properly configured and calibrated. Then, use a logic analyzer or oscilloscope to verify the digital output signals and analog input signals. Consult the datasheet, application notes, and Analog Devices' support resources for more guidance.
