MAX5222EKA+T - Analog Devices

Description: DAC Dual 8Bit Voltage-out Serial SOT23-8 Maxim MAX5222EKA+T, 2-channel 8 bit Serial DAC, 8-Pin SOT-23

Download MAX5222EKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

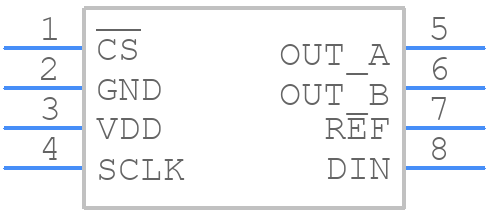

Symbol
MAX5222EKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5222EKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - 21-00078 (8L,SOT-23) rev. B
click to zoom
3D Models
MAX5222EKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - 21-00078 (8L,SOT-23) rev. B
click to zoom

MAX5222EKA+T Details

  • Manufacturer Part Number:

    MAX5222EKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP, TSSOP8,.1

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2000-05-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX5222EKA+T Frequently Asked Questions (FAQs)

  • The MAX5222EKA+T is a high-frequency device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and radiation.
  • To ensure the MAX5222EKA+T is properly powered and decoupled, it is recommended to use a high-quality power supply with low noise and ripple. A 0.1uF ceramic capacitor should be placed between the VCC pin and the GND pin, and a 10uF tantalum capacitor should be placed between the VCC pin and the GND pin. Additionally, it is recommended to use a ferrite bead or a pi-filter to filter out high-frequency noise on the power supply lines.
  • The MAX5222EKA+T has an operating temperature range of -40°C to +125°C. However, it is recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot common issues with the MAX5222EKA+T, such as oscillations or instability, it is recommended to check the power supply voltage and ensure it is within the recommended range. Also, check the input and output signals for any signs of noise or distortion. Use an oscilloscope to measure the output signal and check for any signs of oscillation or instability. Additionally, check the layout and placement of the device to ensure it is following the recommended guidelines.
  • Yes, the MAX5222EKA+T is suitable for use in high-reliability or high-availability applications. The device is built with high-reliability materials and has undergone rigorous testing to ensure its performance and reliability. However, it is recommended to follow proper design and manufacturing guidelines to ensure the device operates within its recommended specifications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5222EKA+T Overview

Use the download button to access the MAX5222EKA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX52, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
