MAX526DCNG+ footprint, schematic symbol and 3D model by Analog Devices

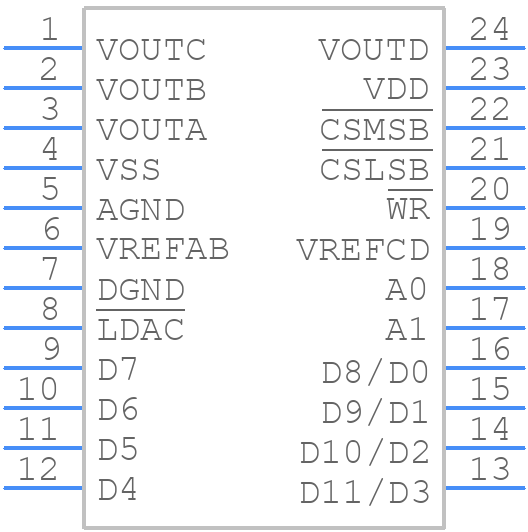

Symbol

click to zoom

PCB Footprints

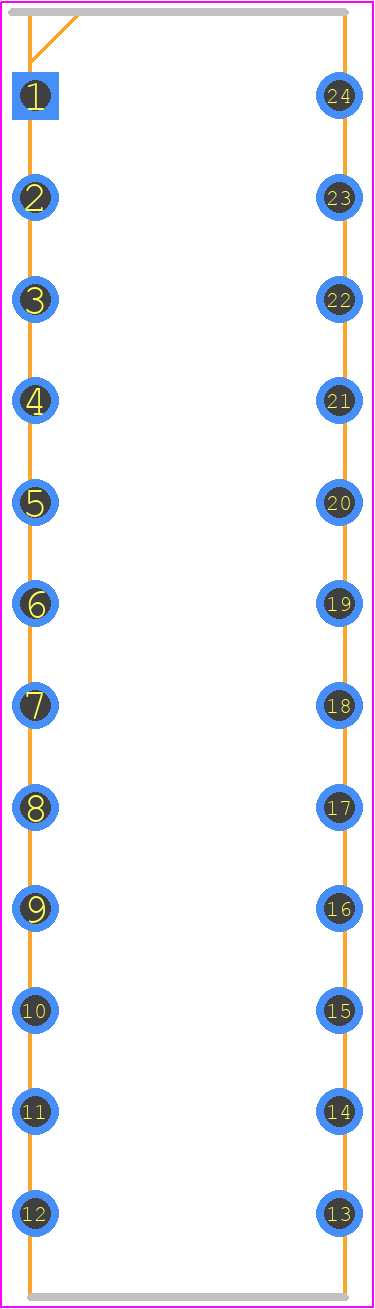

MAX526DCNG+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N24+3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX526DCNG+
Part Number MAX526DCNG+
Manufacturer Analog Devices
Pin Count 24
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - N24+3
Released Date Dec 31, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MAX526DCNG+ Details

Manufacturer Part Number:
MAX526DCNG+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
24-PDIP-300_MIL
Package Description:
DIP-24
Pin Count:
24
Manufacturer Package Code:
24-PDIP-300_MIL
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
HTS Code:
8542.39.00.40
Date Of Intro:
2001-05-16
Manufacturer:
Analog Devices Inc
YTEOL:
9
Converter Type:
D/A CONVERTER
Input Bit Code:
BINARY
JESD-30 Code:
R-PDIP-T24
JESD-609 Code:
e3
Linearity Error-Max (EL):
0.024%
Moisture Sensitivity Level:
1
Number of Bits:
12
Number of Functions:
4
Number of Terminals:
24
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP24,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Peak Reflow Temperature (Cel):
260
Supply Current-Max:
28 mA
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30

MAX526DCNG+ Frequently Asked Questions (FAQs)

A good layout and routing practice for the MAX526DCNG+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device close to the power supply and use a low-ESR capacitor for the VCC pin.
To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC before applying any input signals. Also, ensure that the VCC pin is bypassed with a suitable capacitor to filter out noise and ripple.
The maximum operating frequency of the MAX526DCNG+ is 100 kHz. Operating the device at frequencies above this limit can result in reduced accuracy, increased noise, and decreased performance. It's essential to ensure that the device is operated within the recommended frequency range to maintain optimal performance.
The MAX526DCNG+ has a built-in overvoltage protection (OVP) circuit that protects the device from input voltages exceeding 6V. However, it's still recommended to add external OVP circuitry to protect the device from voltage transients and spikes. Failure to do so can result in device damage or destruction.
The MAX526DCNG+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as using a heat sink or a thermally conductive pad, to keep the device temperature below the maximum rating. Failure to do so can result in reduced reliability, increased thermal noise, and decreased performance.

Trust Checks

Community Provided

System Verified

Community Approved

MAX526DCNG+ Overview

Use the download button to access the MAX526DCNG+ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MAX52, or try a keyword search, such as Digital to Analog Converters
