MAX531ACSD+ - Analog Devices

Description: MAX531ACSD+, 12 bit-Bit DAC SPI, Microwire, 14-Pin SOIC

Download MAX531ACSD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

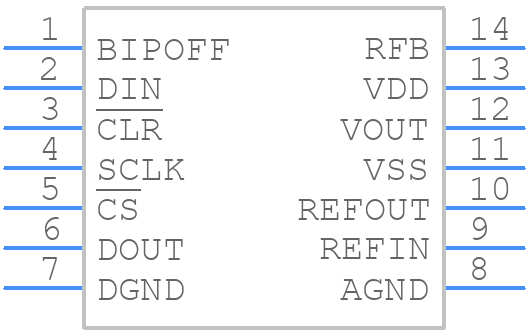

Symbol
MAX531ACSD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX531ACSD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14 Narrow SO-
click to zoom
3D Models
MAX531ACSD+ - Analog Devices - 3D model - Small Outline Packages - 14 Narrow SO-
click to zoom

MAX531ACSD+ Details

  • Manufacturer Part Number:

    MAX531ACSD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1999-05-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    4.6 V

  • Analog Output Voltage-Min:

    -4.6 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    25 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX531ACSD+ Frequently Asked Questions (FAQs)

  • The MAX531ACSD+ is a high-precision device, and its performance can be affected by the PCB layout and placement. It is recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and place the device close to the analog signal sources. Additionally, use a solid ground plane and avoid running digital signals near the analog signals.
  • To ensure accuracy and stability, it is essential to follow proper calibration and compensation techniques. The MAX531ACSD+ has an internal calibration circuit, but it may require external calibration for high-accuracy applications. Additionally, consider using a temperature sensor to compensate for temperature-related drift. Regularly check and adjust the device's performance over time to ensure stability.
  • Common sources of error when using the MAX531ACSD+ include noise, thermal gradients, and component tolerances. To mitigate these errors, use proper shielding and grounding, keep the device away from heat sources, and select components with tight tolerances. Additionally, consider using a low-noise power supply and filtering the input signals to reduce noise.
  • Yes, the MAX531ACSD+ can be used in a multiplexed configuration, but it requires careful consideration of the switching frequency, settling time, and channel-to-channel crosstalk. Ensure that the switching frequency is slow enough to allow the device to settle between channels, and use proper multiplexing techniques to minimize crosstalk.
  • To troubleshoot issues with the MAX531ACSD+, start by checking the power supply and input signals for noise and distortion. Verify that the device is properly configured and calibrated. Use a logic analyzer or oscilloscope to monitor the device's output and input signals. Check for any signs of overheating, and ensure that the device is properly soldered and mounted.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX531ACSD+ Overview

Use the download button to access the MAX531ACSD+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX53, or try a keyword search, such as Digital to Analog Converters
