MAX536BCPE+ - Analog Devices

Description: MAX536BCPE+, 12 bit-Bit DAC Quad SPI, 16-Pin PDIP

Download MAX536BCPE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

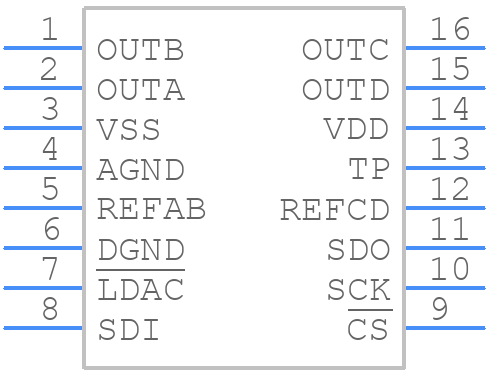

MAX536BCPE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX536BCPE+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P16+9
click to zoom
3D Models
MAX536BCPE+ - Analog Devices - 3D model - Dual-In-Line Packages - P16+9
click to zoom

MAX536BCPE+ Details

  • Manufacturer Part Number:

    MAX536BCPE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-PDIP-300_MIL

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1999-05-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.175 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Settling Time-Nom (tstl):

    3 µs

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX536BCPE+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX536BCPE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a low-ESR capacitor for the bypass capacitor and to place it as close as possible to the device.
  • To ensure proper power-up and initialization of the MAX536BCPE+, make sure to follow the recommended power-up sequence, which involves applying the power supply voltage to the device before applying the logic input signals. Also, ensure that the device is properly bypassed and that the input signals are within the recommended voltage range.
  • The MAX536BCPE+ has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX536BCPE+, start by checking the power supply voltage and ensuring that it's within the recommended range. Next, verify that the input signals are within the recommended voltage range and that the device is properly bypassed. If the issue persists, check for any signs of overheating or physical damage to the device.
  • Yes, the MAX536BCPE+ is suitable for use in high-reliability or safety-critical applications. However, it's essential to follow proper design and testing procedures to ensure the device meets the required safety and reliability standards. Additionally, it's recommended to consult with Analog Devices Inc. for specific guidance on using the device in such applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX536BCPE+ Overview

Use the download button to access the MAX536BCPE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX53, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
