MAX5386NATE+T - Analog Devices

Description: Dual, 256-Tap, Volatile Low-Voltage Linear Taper Digital Potentiometers,+2.6V to +5.5V ,-40°C to +125°C

Download MAX5386NATE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

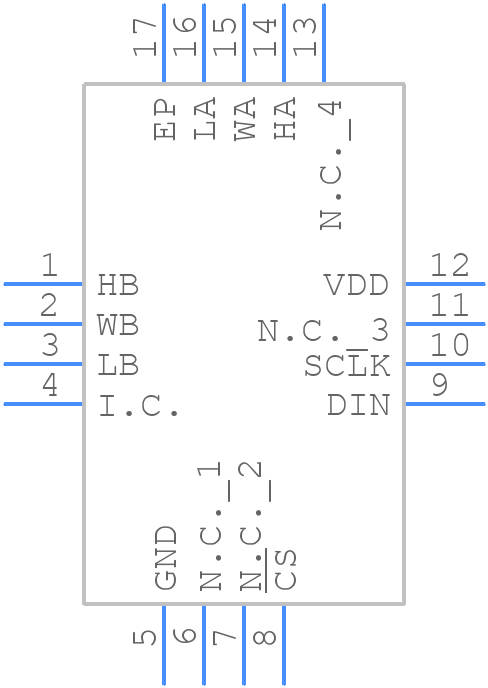

MAX5386NATE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5386NATE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633+5
click to zoom
3D Models
MAX5386NATE+T - Analog Devices - 3D model - Quad Flat No-Lead - T1633+5
click to zoom

MAX5386NATE+T Details

  • Manufacturer Part Number:

    MAX5386NATE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2009-05-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Bandwidth-Nom:

    0.075 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Positions:

    256

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    25%

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    3 mm

MAX5386NATE+T Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding configuration, keeping the analog and digital grounds separate, and placing the device close to the power supply. Additionally, ensure that the input and output traces are routed away from each other and from noisy digital signals.
  • The internal voltage reference can be configured by connecting the REF pin to a capacitor (typically 10nF to 100nF) to ground. This capacitor should be placed close to the REF pin and away from noisy signals. The internal reference voltage can be adjusted by connecting a resistor divider network between the REF pin and the VCC pin.
  • The maximum allowed input voltage for the MAX5386NATE+T is 5.5V. To protect the device from overvoltage conditions, it is recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode at the input pins. Additionally, ensure that the input voltage does not exceed the maximum rating during power-up or power-down sequences.
  • To ensure proper power-up and power-down sequences, it is recommended to follow a controlled power-up sequence, where the power supply voltage (VCC) is applied before the input signals. During power-down, the input signals should be removed before the power supply voltage is removed. Additionally, ensure that the power supply voltage is stable and within the recommended operating range.
  • The recommended operating temperature range for the MAX5386NATE+T is -40°C to +125°C. Temperature affects the device's performance, with increased temperature resulting in decreased accuracy and increased noise. It is recommended to operate the device within the specified temperature range and to ensure proper thermal management to prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5386NATE+T Overview

Use the download button to access the MAX5386NATE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX53, or try a keyword search, such as Digital Potentiometers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
