MAX5387NAUD+T - Analog Devices

Description: Dual, 256-Tap, Volatile, Low-Voltage Linear Taper Digital Potentiometer 14 TSSOP

Download MAX5387NAUD+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

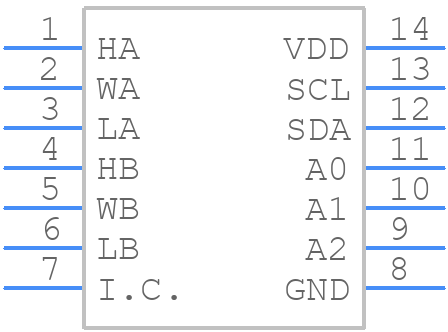

Symbol
MAX5387NAUD+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5387NAUD+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U14+1
click to zoom
3D Models
MAX5387NAUD+T - Analog Devices - 3D model - Small Outline Packages - U14+1
click to zoom

MAX5387NAUD+T Details

  • Manufacturer Part Number:

    MAX5387NAUD+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2010-02-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    0.075 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    256

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    25%

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    4.4 mm

MAX5387NAUD+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5387NAUD+T involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed in a quiet area of the board, away from noise sources.
  • To ensure the MAX5387NAUD+T is stable and does not oscillate, it is recommended to follow the layout and placement guidelines, use a sufficient output capacitor (at least 10uF), and ensure the input voltage is within the recommended range. Additionally, the device should be decoupled from the power supply using a 10uF capacitor and a 1uF capacitor in parallel.
  • The maximum input voltage that can be applied to the MAX5387NAUD+T is 5.5V. Exceeding this voltage may cause damage to the device or affect its performance.
  • The MAX5387NAUD+T is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It is recommended to derate the device's performance and ensure proper thermal management to prevent overheating.
  • To troubleshoot issues with the MAX5387NAUD+T, start by verifying the input voltage, output voltage, and current consumption. Check the device's layout and placement, and ensure that the input and output capacitors are properly connected. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support.
