MAX5392NAUE+ - Analog Devices

Description: Dual, 256-Tap, Volatile, Low-Voltage, Linear Taper Digital Potentiometer 16 TSSOP

Download MAX5392NAUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

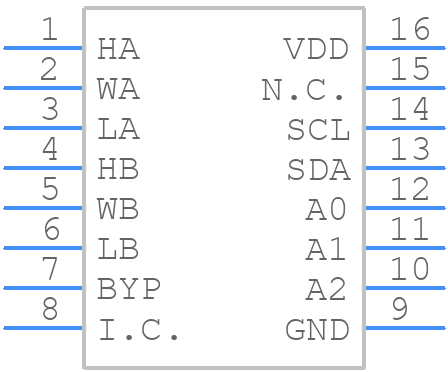

MAX5392NAUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5392NAUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U16+2
click to zoom
3D Models
MAX5392NAUE+ - Analog Devices - 3D model - Small Outline Packages - U16+2
click to zoom

MAX5392NAUE+ Details

  • Manufacturer Part Number:

    MAX5392NAUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2010-02-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    I2C Compatible Interface

  • Bandwidth-Nom:

    0.05 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Positions:

    256

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    25%

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    4.4 mm

MAX5392NAUE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5392NAUE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by VLOGIC. Also, ensure that the EN pin is high during power-up and that the device is in a stable state before applying any input signals.
  • The MAX5392NAUE+ can drive capacitive loads up to 1000pF. However, it's recommended to limit the capacitive load to 100pF or less to ensure stable operation and minimize ringing.
  • To troubleshoot issues with the MAX5392NAUE+, start by checking the power supply and ensuring that the device is properly powered up. Then, verify that the input signals are within the recommended range and that the output signals are not overloaded. Use an oscilloscope to check for any signs of oscillation or instability, and consult the datasheet and application notes for guidance on specific troubleshooting techniques.
  • The MAX5392NAUE+ is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. Consult the datasheet and application notes for guidance on thermal management and derating factors.
