MAX5395LATA+T - Analog Devices

Description: 1.7V ~ 5.5V Digital Potentiometer 10k Ohm 1 Circuit 256 Taps I2C Interface 8-TDFN-EP (2x2)

Download MAX5395LATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

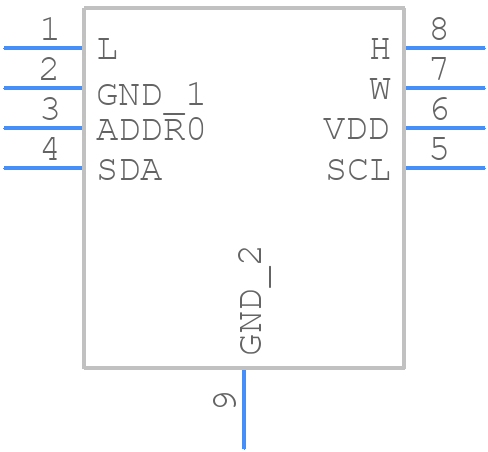

MAX5395LATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5395LATA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822+2
click to zoom
3D Models
MAX5395LATA+T - Analog Devices - 3D model - Small Outline No-lead - T822+2
click to zoom

MAX5395LATA+T Details

  • Manufacturer Part Number:

    MAX5395LATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    SON-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-08-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Bandwidth-Nom:

    1.6 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    256

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    25%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Resistor Terminal Voltage-Min:

    -0.3 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Coefficient-Nom:

    50 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    2 mm

MAX5395LATA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5395LATA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by VLOGIC. Also, ensure that the EN pin is high during power-up, and the device is in a valid configuration mode (e.g., SPI or I2C) before applying any input signals.
  • The MAX5395LATA+T can drive capacitive loads up to 1000pF, but it's recommended to keep the load capacitance below 500pF to ensure stable operation and minimize ringing.
  • To troubleshoot issues with the MAX5395LATA+T, start by verifying the power supply and clock signals, then check the device configuration and communication protocol. Use a logic analyzer or oscilloscope to monitor the device's output signals and communication bus. Also, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The MAX5395LATA+T is rated for operation up to 125°C, but its performance and accuracy may degrade at high temperatures. It's recommended to derate the device's output current and voltage accuracy at high temperatures, and to ensure proper thermal management and heat sinking to prevent overheating.
