MAX5418PETA+T - Analog Devices

Description: 256-Tap, Nonvolatile, I?C-Interface, Digital Potentiometers

Download MAX5418PETA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

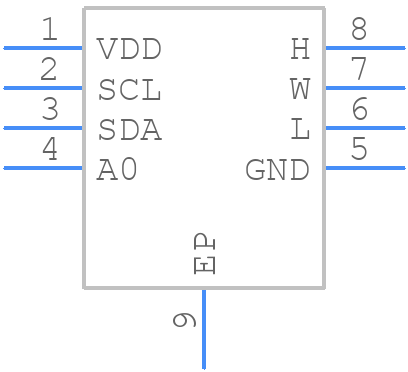

MAX5418PETA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5418PETA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T833-1
click to zoom
3D Models
MAX5418PETA+T - Analog Devices - 3D model - Small Outline No-lead - T833-1
click to zoom

MAX5418PETA+T Details

  • Manufacturer Part Number:

    MAX5418PETA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    HVSON, SOLCC8,.12,25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-02-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Bandwidth-Nom:

    0.05 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    256

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistor Terminal Voltage-Max:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    3 mm

MAX5418PETA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5418PETA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of external components for the MAX5418PETA+T depends on the specific application requirements. For resistors, consider the desired output voltage, output current, and power dissipation. For capacitors, choose ones with low ESR and high ripple current ratings. The datasheet and application notes provide guidance on component selection, and it's recommended to consult with experienced engineers or Analog Devices' support team for specific advice.
  • The MAX5418PETA+T has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and follow the thermal management guidelines in the datasheet. It's also essential to calculate the power dissipation and junction temperature rise using the equations provided in the datasheet and take necessary precautions to keep the device within its operating temperature range.
  • To troubleshoot issues with the MAX5418PETA+T, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and component values to ensure they match the recommended values. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for troubleshooting guides, and consider seeking support from Analog Devices' technical team or experienced engineers.
  • The MAX5418PETA+T is designed to meet EMI/EMC regulatory standards, but it's essential to follow proper PCB layout and design practices to minimize EMI. Use shielding, filtering, and grounding techniques to reduce emissions. Ensure that the device is operated within its specified frequency range, and follow the guidelines in the datasheet and application notes for EMI/EMC compliance. It's recommended to consult with experienced engineers or Analog Devices' support team for specific advice on EMI/EMC compliance.
