- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAX5424ETA+T
- Part Number MAX5424ETA+T
- Manufacturer Analog Devices
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - 8 TDFN T833+2
- Released Date Feb 5, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX5424ETA+T Details
-
Manufacturer Part Number:
MAX5424ETA+T
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
8-LFCSP-3X3X0.75
-
Package Description:
HVSON, SOLCC8,.12,25
-
Pin Count:
8
-
Manufacturer Package Code:
8-LFCSP-3X3X0.75
-
Reach Compliance Code:
Compliant
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2004-08-09
MAX5424ETA+T Frequently Asked Questions (FAQs)
-
The recommended layout and placement for the MAX5424ETA+T involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the power source to minimize voltage drops.
-
To ensure proper power-up and power-down of the MAX5424ETA+T, it is recommended to follow a specific power-up sequence. The EN pin should be pulled high after the input voltage (VIN) has reached its nominal value. During power-down, the EN pin should be pulled low before the input voltage is removed. Additionally, the device should be powered up and down slowly to prevent inrush currents.
-
The maximum allowed voltage on the EN pin of the MAX5424ETA+T is 6V. Exceeding this voltage can cause damage to the device. It is recommended to use a voltage limiter or a resistor divider network to ensure the EN pin voltage does not exceed 6V.
-
Thermal management is critical for the MAX5424ETA+T. The device should be mounted on a PCB with a solid ground plane to help dissipate heat. A heat sink can be attached to the device to further improve thermal performance. The device should be operated within its recommended operating temperature range to prevent overheating.
-
The recommended input capacitor value for the MAX5424ETA+T is 10uF to 22uF, with a voltage rating of at least 10V. A low-ESR ceramic capacitor or a film capacitor is recommended. The input capacitor should be placed close to the device to minimize voltage drops and noise.
Trust Checks
Community Provided
System Verified
Community Approved
MAX5424ETA+T Overview

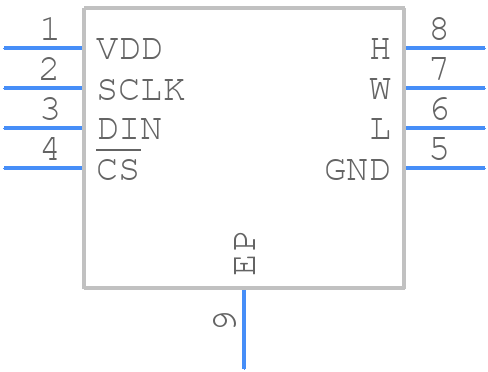

Use the download button to access the MAX5424ETA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX54,
or try a keyword search, such as Digital Potentiometers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
