MAX5442ACUB+ - Analog Devices

Description: Maxim MAX5442ACUB+, 16 bit Serial DAC, 10-Pin μMAX

Download MAX5442ACUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

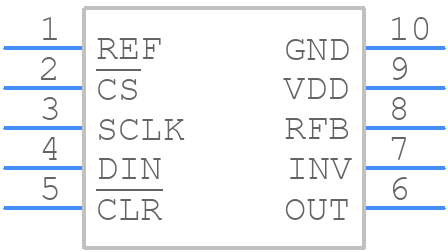

Symbol
MAX5442ACUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5442ACUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2_2021
click to zoom
3D Models
MAX5442ACUB+ - Analog Devices - 3D model - Small Outline Packages - U10+2_2021
click to zoom

MAX5442ACUB+ Details

  • Manufacturer Part Number:

    MAX5442ACUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    MICRO MAX PACKAGE-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2000-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    2.5 V

  • Analog Output Voltage-Min:

    -2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX5442ACUB+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5442ACUB+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the power source to minimize voltage drops.
  • To ensure the MAX5442ACUB+ is properly powered up and initialized, apply a clean and stable power supply to the device, and ensure that the input voltage is within the recommended range. The device will automatically power up and initialize when the input voltage exceeds the undervoltage lockout (UVLO) threshold. Wait for the device to complete its internal power-up sequence before applying any input signals.
  • The MAX5442ACUB+ can drive capacitive loads up to 100nF. However, it's recommended to limit the capacitive load to 10nF or less to ensure stable operation and minimize ringing on the output.
  • To troubleshoot issues with the MAX5442ACUB+ output voltage, first check the input voltage and ensure it's within the recommended range. Verify that the device is properly powered up and initialized. Check for any short circuits or excessive loads on the output. Use an oscilloscope to measure the output voltage and look for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for further guidance.
  • The MAX5442ACUB+ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation. Consult the datasheet and application notes for more information on high-temperature operation.
