MAX5442BCUB+ - Analog Devices

Description: Digital-in-Analog-Wandler - DAC 16-Bit Precision DAC

Download MAX5442BCUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

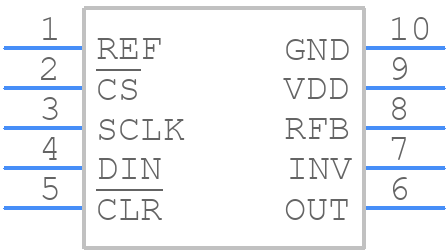

Symbol
MAX5442BCUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5442BCUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - Max 21-0061_N
click to zoom
3D Models
MAX5442BCUB+ - Analog Devices - 3D model - Small Outline Packages - Max 21-0061_N
click to zoom

MAX5442BCUB+ Details

  • Manufacturer Part Number:

    MAX5442BCUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    MICRO MAX PACKAGE-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2000-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    2.5 V

  • Analog Output Voltage-Min:

    -2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX5442BCUB+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5442BCUB+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to minimize the length of the traces between the device and the capacitors.
  • To ensure the MAX5442BCUB+ is stable and doesn't oscillate, it's essential to follow the recommended layout and placement guidelines, use a suitable output capacitor with a low equivalent series resistance (ESR), and ensure the input voltage is within the recommended range. Additionally, it's recommended to add a small ceramic capacitor (e.g., 10nF) between the output and ground to improve stability.
  • The maximum input voltage that can be applied to the MAX5442BCUB+ is 5.5V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or a voltage limiter to ensure the input voltage remains within the recommended range.
  • The MAX5442BCUB+ is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure the device is properly heatsinked, and the ambient temperature is within the recommended range to prevent overheating and ensure reliable operation.
  • To troubleshoot issues with the MAX5442BCUB+, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for guidance on troubleshooting common issues, and consider seeking support from Analog Devices Inc. or a qualified engineer if the issue persists.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5442BCUB+ Overview

Use the download button to access the MAX5442BCUB+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX54, or try a keyword search, such as Digital to Analog Converters
