MAX547BCMH+ - Analog Devices

Description: Digital to Analog Converters - DAC Octal, 13-Bit Voltage-Output DAC with Parallel Interface

Download MAX547BCMH+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

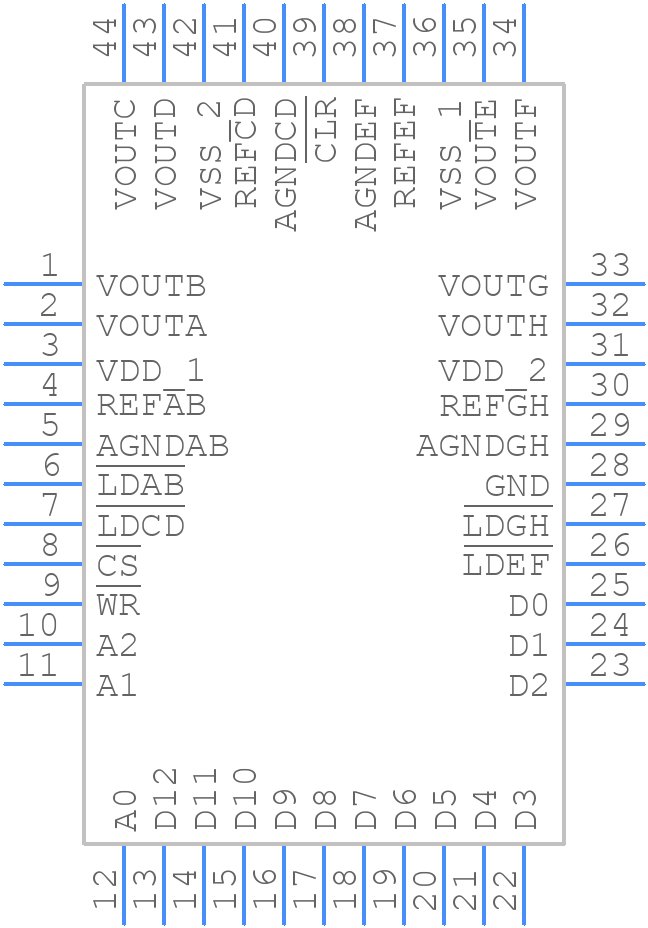

MAX547BCMH+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

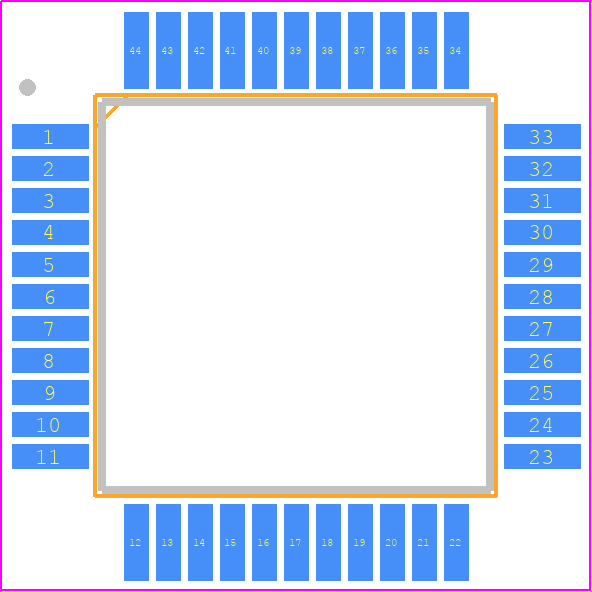

MAX547BCMH+ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - M44+2
click to zoom
3D Models
MAX547BCMH+ - Analog Devices - 3D model - Quad Flat Packages - M44+2
click to zoom

MAX547BCMH+ Details

  • Manufacturer Part Number:

    MAX547BCMH+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    44-MQFP-10X10X2(+3.2)

  • Package Description:

    10 X 10 MM, 2 MM HEIGHT, ROHS COMPLIANT, MQFP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    44-MQFP-10X10X2(+3.2)

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1999-05-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    4.5 V

  • Analog Output Voltage-Min:

    -4.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    13

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP44,.5SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

MAX547BCMH+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX547BCMH+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a low-ESR capacitor for the bypass capacitor and to place it as close as possible to the device.
  • To ensure the accuracy and stability of the output voltage, it's essential to use a high-quality external resistor divider network, and to ensure that the input voltage is within the recommended range. Additionally, the output capacitor should be selected based on the specific application requirements, and the device should be operated within the recommended temperature range.
  • The maximum power dissipation of the MAX547BCMH+ is dependent on the package type and the ambient temperature. The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. The maximum power dissipation should not exceed the recommended value specified in the datasheet.
  • The MAX547BCMH+ is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. The output voltage accuracy and stability may degrade, and the device's lifespan may be reduced. It's essential to consult the datasheet and to perform thorough testing and validation before using the device in a high-temperature environment.
  • To troubleshoot issues with the MAX547BCMH+, start by verifying the input voltage and the output voltage using a multimeter. Check the external resistor divider network and the output capacitor for any signs of damage or wear. Ensure that the device is properly soldered and that there are no soldering defects. If the issue persists, consult the datasheet and the application notes, and consider seeking support from Analog Devices Inc. or a qualified engineer.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX547BCMH+ Overview

Use the download button to access the MAX547BCMH+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX54, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
