MAX5483ETE+ - Analog Devices

Description: 10-Bit, Nonvolatile, Linear-Taper Digital Potentiometers

Download MAX5483ETE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

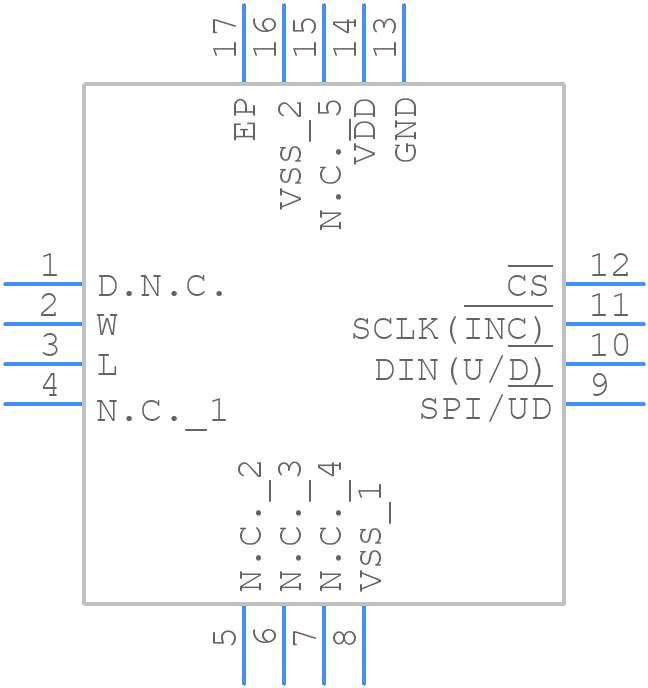

MAX5483ETE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5483ETE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633F+3
click to zoom
3D Models
MAX5483ETE+ - Analog Devices - 3D model - Quad Flat No-Lead - T1633F+3
click to zoom

MAX5483ETE+ Details

  • Manufacturer Part Number:

    MAX5483ETE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, EXPOSED PAD, MO-220WEED-2, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-06-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    NV MEMORY; IT CAN ALSO OPERATE WITH 2.5V DUAL SUPPLY

  • Control Interface:

    INCREMENT/DECREMENT

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    1024

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    3 mm

MAX5483ETE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5483ETE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and interference.
  • To ensure accurate voltage measurement, it's essential to use a high-impedance voltage source, keep the input voltage within the specified range, and minimize noise and interference on the input lines. Additionally, calibrate the device according to the datasheet recommendations and use a low-noise, low-temperature-coefficient resistor for the voltage divider.
  • The MAX5483ETE+ is rated for operation from -40°C to +125°C, but it's essential to note that the device's accuracy and linearity may degrade at extreme temperatures. It's recommended to operate the device within the specified temperature range for optimal performance.
  • Yes, the MAX5483ETE+ can be used with a single-supply voltage, but it's essential to ensure that the input voltage is within the specified range and that the device is properly biased. Consult the datasheet for specific guidelines on single-supply operation.
  • Common issues with the MAX5483ETE+ include incorrect voltage measurement, noise, and oscillation. To troubleshoot these issues, check the PCB layout, ensure proper power supply decoupling, and verify that the input voltage is within the specified range. Consult the datasheet and application notes for specific troubleshooting guidelines.
