MAX5486EUG+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX5486EUG+ - AUDIO VOLUME CONTROL, STEREO, TSSOP-24

Download MAX5486EUG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

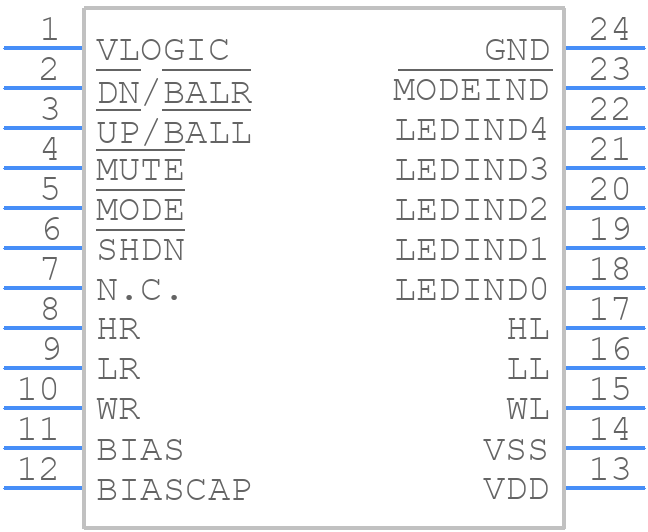

MAX5486EUG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5486EUG+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - Max 21-0066_M (24 TSSOP)
click to zoom
3D Models
MAX5486EUG+ - Analog Devices - 3D model - Small Outline Packages - Max 21-0066_M (24 TSSOP)
click to zoom

MAX5486EUG+ Details

  • Manufacturer Part Number:

    MAX5486EUG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-TSSOP_4.4-4.4_MM

  • Package Description:

    4.40 MM, LEAD FREE, MO-153AD, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2006-11-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATE WITH +/-2.7V SUPPLY

  • Bandwidth-Nom:

    100 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.4 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX5486EUG+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5486EUG+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated analog ground layer is recommended.
  • To ensure the accuracy of the DAC output voltage, it's essential to use a high-precision voltage reference, such as the MAX6126, and to minimize the noise on the REF pin. Additionally, the output voltage should be buffered with an op-amp, such as the OP07, to prevent loading effects.
  • The maximum clock frequency that can be used with the MAX5486EUG+ is 50 MHz. However, the actual clock frequency used should be determined by the specific application requirements and the noise tolerance of the system.
  • The POR and BOR functions can be handled by connecting the POR pin to a capacitor and a resistor to VCC, and the BOR pin to a capacitor and a resistor to GND. The values of the capacitor and resistor should be chosen based on the specific application requirements and the desired reset timing.
  • The recommended method for programming the MAX5486EUG+ is to use a serial interface, such as SPI or I2C, to write to the device's registers. The programming sequence should follow the guidelines provided in the datasheet, and the device should be powered up and initialized before programming.
