MAX549ACUA+ - Analog Devices

Description: MAX549ACUA+, 8 bit-Bit DAC Dual, SPI, 8-Pin μMAX

Download MAX549ACUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

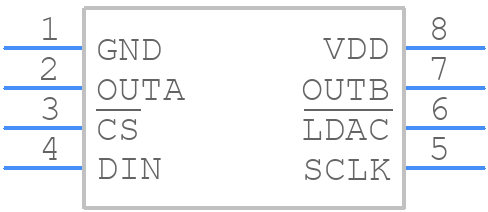

Symbol
MAX549ACUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX549ACUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - umax-8
click to zoom
3D Models
MAX549ACUA+ - Analog Devices - 3D model - Small Outline Packages - umax-8
click to zoom

MAX549ACUA+ Details

  • Manufacturer Part Number:

    MAX549ACUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    UMAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1997-03-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.39%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    0.55 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX549ACUA+ Frequently Asked Questions (FAQs)

  • The MAX549ACUA+ requires careful layout and placement to minimize noise and ensure proper operation. It's recommended to place the device close to the power supply, use a solid ground plane, and keep the input and output traces short and separate. Additionally, avoid placing the device near high-frequency sources or noise-generating components.
  • The MAX549ACUA+ has an output voltage range of 0.5V to 4.5V. To handle this range, ensure that your system can accommodate the full output voltage range. You may need to add voltage dividers or level shifters to interface with other components that have different voltage requirements.
  • The MAX549ACUA+ has an operating temperature range of -40°C to +125°C. However, the device's performance and accuracy may degrade at extreme temperatures. It's essential to ensure that your system operates within the recommended temperature range to maintain optimal performance.
  • The MAX549ACUA+ has a programmable output voltage range. You can program the device using the VSET pin, which sets the output voltage range. The VSET pin can be connected to a voltage source, a resistor divider, or a digital signal to set the desired output voltage range. Refer to the datasheet for specific programming guidelines.
  • The typical settling time for the MAX549ACUA+ is around 10µs to 20µs, depending on the output voltage range and load capacitance. This settling time is relatively fast, making the device suitable for applications that require rapid voltage changes.
