MAX549AEUA+ - Analog Devices

Description: Digital to Analog Converters - DAC +2.5V to +5.5V, Low-Power, Single/Dual, 8-Bit Voltage-Output DACs in uMAX Package

Download MAX549AEUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

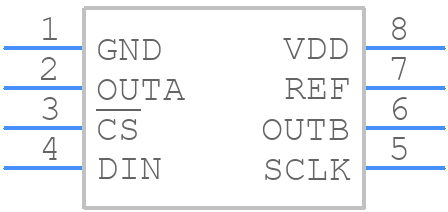

Symbol
MAX549AEUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX549AEUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8+1_2021
click to zoom
3D Models
MAX549AEUA+ - Analog Devices - 3D model - Small Outline Packages - U8+1_2021
click to zoom

MAX549AEUA+ Details

  • Manufacturer Part Number:

    MAX549AEUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    UMAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1997-03-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.39%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    0.55 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX549AEUA+ Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow a star-ground configuration, keep the input and output traces short and separate, and use a solid ground plane. Additionally, place the device close to the power supply and use a low-ESR capacitor for decoupling.
  • The MAX549AEUA+ requires a single 2.7V to 5.5V power supply. Ensure the power supply is stable and well-regulated. Power sequencing is not critical, but it's recommended to power the device after the input signals are stable to prevent unwanted output states.
  • The absolute maximum input voltage rating is 6V. However, it's recommended to limit the input voltage to the power supply voltage (VCC) to ensure proper operation and prevent damage.
  • The MAX549AEUA+ can sink or source up to 10mA of output current. However, the output current capability decreases as the output voltage approaches the power supply rails. Ensure the output current is within the recommended limits to prevent device overheating and damage.
  • The MAX549AEUA+ has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. To prevent overheating, ensure good airflow, use a heat sink if necessary, and keep the device away from high-power components. Monitor the device temperature and adjust the operating conditions accordingly.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MAX549AEUA+ Overview

Use the download button to access the MAX549AEUA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX54, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
