MAX5715BAUD+T - Analog Devices

Description: Digital to Analog Converters - DAC Ultra-Small, Quad-Channel, 8-/10-/12-Bit Buffered Output DACs with Internal Reference and SPI Interface

Download MAX5715BAUD+T Model

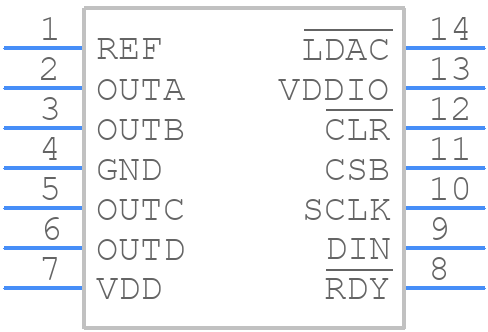

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX5715BAUD+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U14+1
click to zoom
3D Models
MAX5715BAUD+T - Analog Devices  - 3D model - Small Outline Packages - U14+1
click to zoom

MAX5715BAUD+T Details

  • Manufacturer Part Number:

    MAX5715BAUD+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-TSSOP_4.4-4.4_MM

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2012-07-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Linearity Error-Max (EL):

    0.024%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    1.5 mA

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX5715BAUD+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5715BAUD+T involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • The MAX5715BAUD+T requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirements involve powering up the device in the following order: GND, VCC, and then the input signals. It's also recommended to add a 10uF decoupling capacitor between VCC and GND to filter out noise.
  • The maximum operating temperature range for the MAX5715BAUD+T is -40°C to +125°C. The device's performance may be affected by temperature, with the output voltage accuracy and linearity degrading at higher temperatures. It's recommended to operate the device within the specified temperature range to ensure optimal performance.
  • To troubleshoot common issues with the MAX5715BAUD+T, start by checking the power supply and ensuring it's within the specified range. Next, verify that the input signals are within the specified range and that the device is properly configured. Use an oscilloscope to check for oscillations or noise on the output, and check the device's temperature to ensure it's within the specified range. If the issue persists, consult the datasheet and application notes for further troubleshooting guidance.
  • The MAX5715BAUD+T has built-in ESD protection diodes on all pins, which can withstand up to 2kV of ESD voltage. To prevent latch-up, it's recommended to use a series resistor on the input pins and to ensure that the input signals are within the specified range. Additionally, it's recommended to use a TVS (transient voltage suppressor) diode on the power supply line to protect against voltage transients.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5715BAUD+T Overview

Use the download button to access the MAX5715BAUD+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX57, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
