MAX5722EUA+ - Analog Devices

Description: Maxim MAX5722EUA+, 2-channel 12 bit Serial DAC, 8-Pin μMAX

Download MAX5722EUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

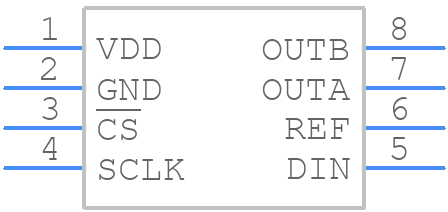

MAX5722EUA+ - Analog Devices - PCB symbol
