MAX5883EGM+TD - Analog Devices

Description: 3.3V, 12-Bit, 200Msps High Dynamic Performance DAC with CMOS Inputs

Download MAX5883EGM+TD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

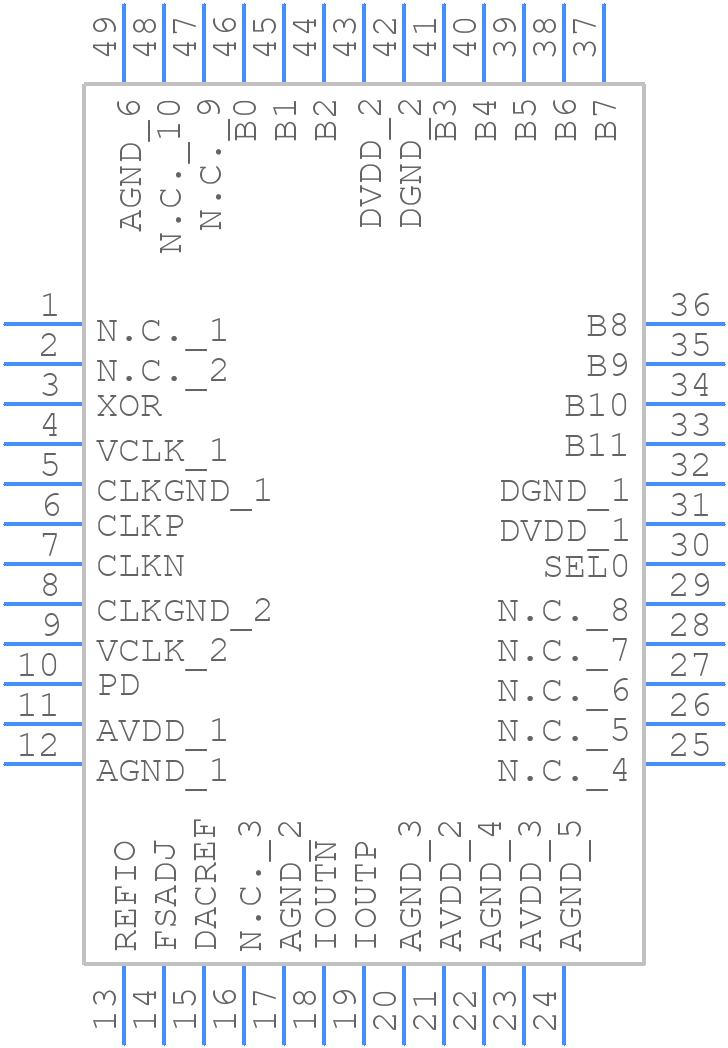

MAX5883EGM+TD - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5883EGM+TD - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX5883EGM+TD
click to zoom
3D Models
MAX5883EGM+TD - Analog Devices - 3D model - Quad Flat No-Lead - MAX5883EGM+TD
click to zoom

MAX5883EGM+TD Details

  • Manufacturer Part Number:

    MAX5883EGM+TD

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-7X7X0.85

  • Package Description:

    HVQCCN,

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.85

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2003-05-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    1.1 V

  • Analog Output Voltage-Min:

    -0.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Settling Time-Nom (tstl):

    0.011 µs

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX5883EGM+TD Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5883EGM+TD involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to place the device close to the signal source and use a low-impedance power supply.
  • To ensure the accuracy of the MAX5883EGM+TD's output voltage, it's essential to use a high-precision voltage reference, such as the MAX6126, and to minimize the noise on the input pins. Additionally, the device should be operated within its specified temperature range, and the output voltage should be buffered with an op-amp if it's being used to drive a load.
  • The MAX5883EGM+TD can drive a maximum capacitive load of 100nF. Exceeding this limit may cause the device to oscillate or become unstable. If a larger capacitive load is required, an external buffer amplifier should be used.
  • To troubleshoot issues with the MAX5883EGM+TD's output voltage, first check the input voltage and ensure it's within the specified range. Then, verify that the device is properly powered and that the output voltage is not being loaded excessively. If the issue persists, check for noise on the input pins and ensure that the device is operated within its specified temperature range.
  • The MAX5883EGM+TD is specified to operate from -40°C to +125°C. However, its performance may degrade at high temperatures, and the output voltage may drift. If the device is to be used in a high-temperature environment, it's recommended to derate the output voltage and to ensure that the device is properly heat-sinked.
