MAX5885EGM+D - Analog Devices

Description: Digital to Analog Converters - DAC 3.3V, 16-Bit, 200Msps High Dynamic Performance DAC with CMOS Inputs

Download MAX5885EGM+D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

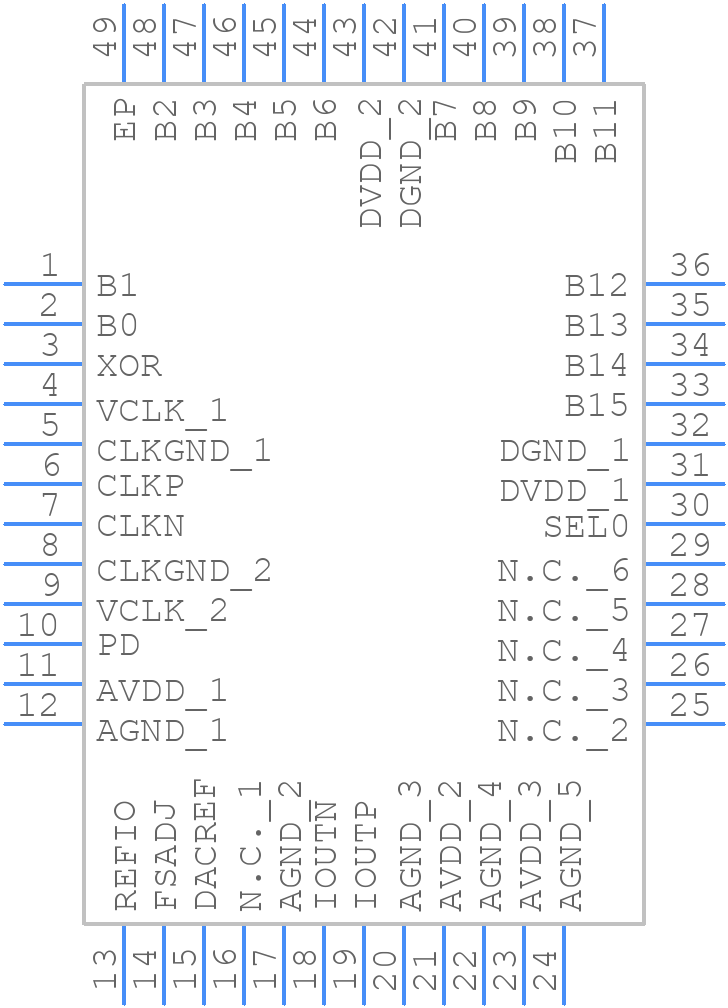

MAX5885EGM+D - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5885EGM+D - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX5885EGM+D
click to zoom
3D Models
MAX5885EGM+D - Analog Devices - 3D model - Quad Flat No-Lead - MAX5885EGM+D
click to zoom

MAX5885EGM+D Details

  • Manufacturer Part Number:

    MAX5885EGM+D

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-7X7X0.85

  • Package Description:

    HVQCCN,

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.85

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2003-05-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    1.1 V

  • Analog Output Voltage-Min:

    -0.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Settling Time-Nom (tstl):

    0.011 µs

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX5885EGM+D Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5885EGM+D involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals near the analog inputs.
  • To filter the output of the MAX5885EGM+D, you can use a low-pass filter with a cutoff frequency set to the Nyquist frequency (half the sampling rate). A 2nd-order or 3rd-order Butterworth filter is recommended. You can also use a digital filter in your application code to further reduce noise and aliasing.
  • The MAX5885EGM+D can handle input voltages up to 6V, but it's recommended to limit the input voltage to 5.5V to ensure reliable operation and to prevent damage to the device.
  • Calibration of the MAX5885EGM+D involves adjusting the offset and gain of the device to match the specific application requirements. You can use the device's built-in calibration registers to adjust the offset and gain, or use an external calibration circuit to achieve the best possible accuracy.
  • The recommended power-up sequence for the MAX5885EGM+D is to first power up the analog supply (AVDD), followed by the digital supply (DVDD), and then the clock signal. This sequence helps to prevent damage or malfunction of the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5885EGM+D Overview

Use the download button to access the MAX5885EGM+D schematic symbol, PCB footprint, and 3D model.
