MAX5955AEEE+ - Analog Devices

Description: Hot Swap Voltage Controllers Low-Voltage, Dual Hot-Swap Controllers with Independent On/Off Control

Download MAX5955AEEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

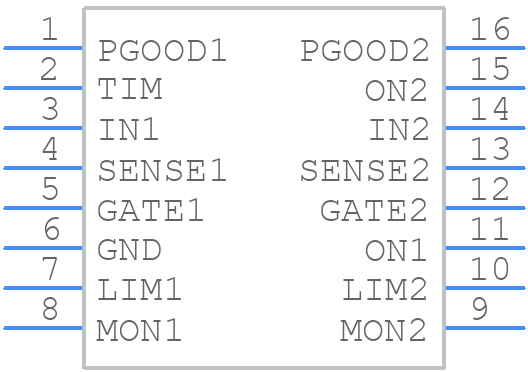

MAX5955AEEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5955AEEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 QSOP
click to zoom
3D Models
MAX5955AEEE+ - Analog Devices - 3D model - Small Outline Packages - 16 QSOP
click to zoom

MAX5955AEEE+ Details

  • Manufacturer Part Number:

    MAX5955AEEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, 0.025 INCH PITCH, LEAD FREE, MO-137AB, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-11-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    2.3 mA

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX5955AEEE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5955AEEE+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper power-up and initialization of the MAX5955AEEE+, make sure to follow the power-up sequence specified in the datasheet. This typically involves applying the power supply voltage to the device before applying any input signals. Also, ensure that the input signals are within the specified voltage range and that the device is properly configured through the I2C interface.
  • The MAX5955AEEE+ has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, and use a heat sink if necessary. Also, follow the thermal design guidelines provided in the datasheet, and consider using thermal interface materials to improve heat transfer. Additionally, monitor the device's temperature through the thermal monitoring feature and take corrective action if the temperature exceeds the specified limit.
  • To troubleshoot issues with the MAX5955AEEE+, start by reviewing the datasheet and application notes to ensure that the device is properly configured and used within its specified operating conditions. Use a logic analyzer or oscilloscope to monitor the device's input and output signals, and check for any errors or anomalies. Also, consult the device's error detection and correction mechanisms, such as the built-in error detection and correction (EDC) feature. If the issue persists, contact Analog Devices' technical support for further assistance.
  • Yes, the MAX5955AEEE+ is a high-frequency device and requires proper EMI/EMC design considerations. Ensure that the device is placed in a shielded area, and use EMI filters or shielding on the input and output traces. Also, follow the EMI/EMC design guidelines provided in the datasheet and application notes, and consider using EMI-absorbing materials or shielding cans to reduce electromagnetic radiation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5955AEEE+ Overview

Use the download button to access the MAX5955AEEE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX59, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
