Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
HTS Code:
8542.31.00.30
Date Of Intro:
2011-03-02
Manufacturer:
Analog Devices Inc
YTEOL:
10
JESD-30 Code:
S-XQCC-N32
JESD-609 Code:
e3
Length:
5 mm
Moisture Sensitivity Level:
1
Number of Terminals:
32
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC32,.2SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Supply Voltage-Max:
60 V
Supply Voltage-Min:
32 V
Supply Voltage-Nom:
54 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
5 mm
uPs/uCs/Peripheral ICs Type:
PSE CONTROLLER
MAX5980GTJ+ Frequently Asked Questions (FAQs)
A good PCB layout for the MAX5980GTJ+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
To ensure proper power-up and configuration, it's essential to follow the power-up sequence recommended in the datasheet. This typically involves powering up the device in a specific order, such as powering up the input voltage (VIN) before the output voltage (VOUT). Additionally, the device should be configured in a specific order, such as setting the output voltage and then enabling the output.
The MAX5980GTJ+ has a maximum junction temperature (TJ) of 150°C. To ensure it doesn't overheat, it's essential to provide adequate heat sinking, such as using a heat sink or a thermal pad. Additionally, the device should be operated within its recommended operating conditions, and the PCB should be designed to dissipate heat efficiently. It's also important to monitor the device's temperature and take corrective action if it exceeds the recommended temperature range.
To troubleshoot issues with the MAX5980GTJ+, it's essential to follow a systematic approach. This typically involves checking the input voltage, output voltage, and current, as well as verifying the device's configuration and power-up sequence. Additionally, it's important to check for any signs of overheating, such as excessive temperature or thermal shutdown. If the issue persists, it may be necessary to consult the datasheet, application notes, or contact Analog Devices' technical support.
Yes, the MAX5980GTJ+ is a switching regulator, and as such, it can generate electromagnetic interference (EMI). To ensure compliance with regulatory requirements, it's essential to follow good design practices, such as using a shielded enclosure, keeping the layout compact, and using EMI filters or shielding. Additionally, the device should be tested for EMI/EMC compliance using standardized test methods, such as those outlined in the IEC 61000-4 series.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAX5980GTJ+ Overview

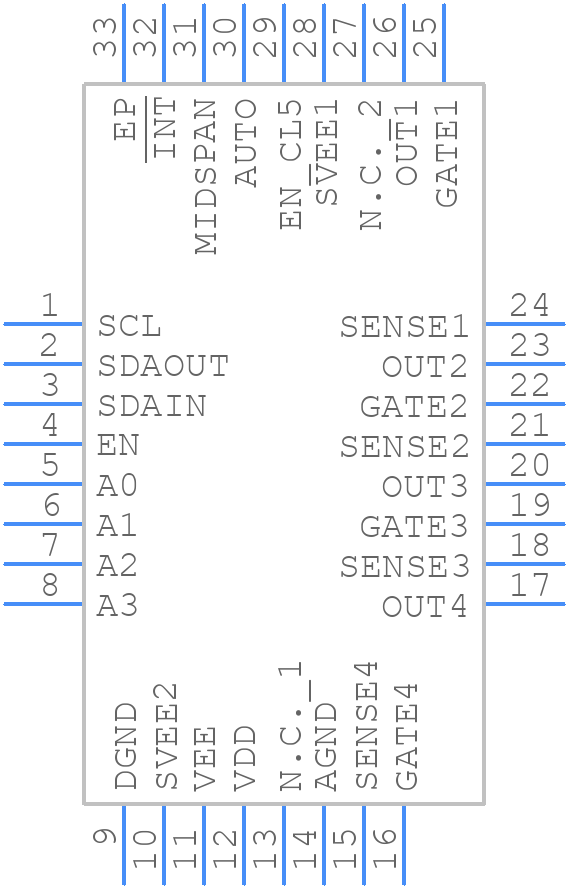

Use the download button to access the MAX5980GTJ+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX59,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
