MAX5982AATE+ - Analog Devices

Description: IEEE 802.3af/at-Compliant, Powered Device Interface Controllers with Integrated 70W High-Power MOSFE

Download MAX5982AATE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

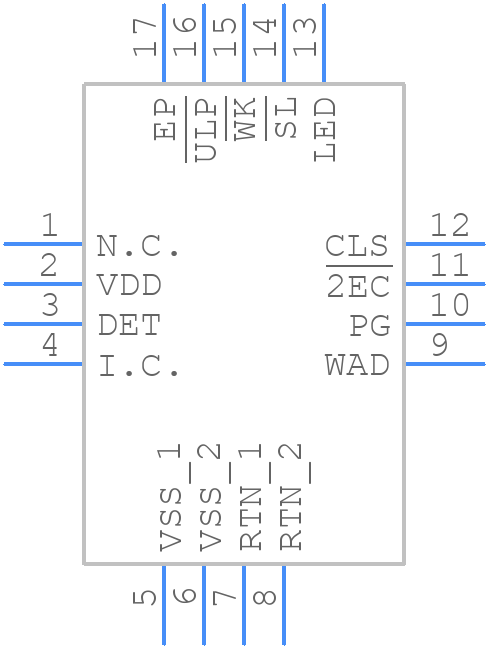

Symbol
MAX5982AATE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5982AATE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1655+4
click to zoom
3D Models
MAX5982AATE+ - Analog Devices - 3D model - Quad Flat No-Lead - T1655+4
click to zoom

MAX5982AATE+ Details

  • Manufacturer Part Number:

    MAX5982AATE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-5X5X0.75

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2011-07-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX5982AATE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5982AATE+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The MAX5982AATE+ requires a power-up sequence to ensure proper initialization. The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input voltage. The device is fully operational after the power-up sequence is complete and the internal voltage regulators are stable.
  • The MAX5982AATE+ can deliver up to 2A of continuous current to the load, but this is dependent on the input voltage, output voltage, and ambient temperature. It's recommended to check the device's thermal performance and power dissipation to ensure reliable operation.
  • To troubleshoot issues with the MAX5982AATE+ not regulating the output voltage correctly, check the input voltage, output voltage, and feedback resistors. Ensure that the input voltage is within the recommended range, the output voltage is set correctly, and the feedback resistors are properly connected. Also, check for any signs of overheating or excessive power dissipation.
  • The MAX5982AATE+ is rated for operation up to 125°C, but its performance and reliability may be affected at high temperatures. It's recommended to check the device's thermal performance and power dissipation to ensure reliable operation in high-temperature environments. Additional thermal management may be required to prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5982AATE+ Overview

Use the download button to access the MAX5982AATE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX59, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
