MAX5996CATE+ - Analog Devices

Description: IEEE 802.3bt-Compliant, Powered Device with Power Telemetry and Power/Current Limit

Download MAX5996CATE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

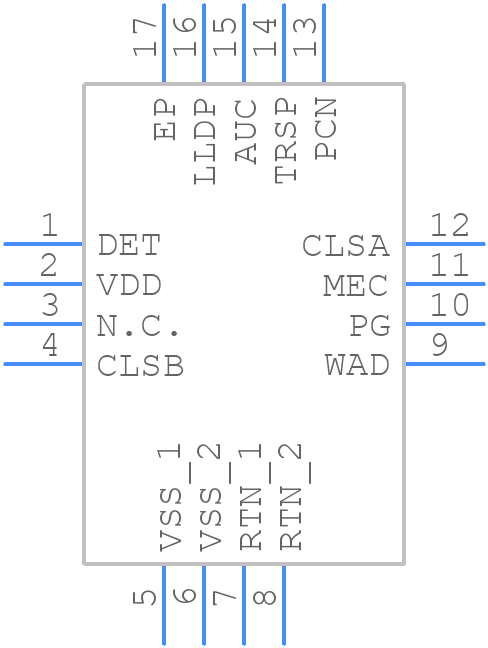

MAX5996CATE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5996CATE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1655+5
click to zoom
3D Models
MAX5996CATE+ - Analog Devices - 3D model - Quad Flat No-Lead - T1655+5
click to zoom

MAX5996CATE+ Details

  • Manufacturer Part Number:

    MAX5996CATE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-5X5X0.75

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-5X5X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-10-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.2SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX5996CATE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5996CATE+ should follow the guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper power-up and power-down of the MAX5996CATE+, it's recommended to follow a controlled power-up sequence, where the input voltage (VIN) is applied before the enable pin (EN) is asserted. During power-down, the enable pin should be de-asserted before the input voltage is removed. This helps prevent unwanted current draw and ensures the device is properly shut down.
  • The MAX5996CATE+ is rated for operation from -40°C to +125°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown. It's also important to ensure proper thermal management, such as using a heat sink or thermal pad, to keep the device within its recommended operating temperature range.
  • To troubleshoot issues with the MAX5996CATE+, start by verifying the power supply and input voltage, then check the enable pin and output voltage. Use an oscilloscope to monitor the output voltage and input current, and check for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support for further assistance.
  • Yes, the MAX5996CATE+ is suitable for use in high-reliability and automotive applications, as it meets the requirements for AEC-Q100 Grade 1 and is manufactured using a robust and reliable process. However, it's essential to follow proper design and manufacturing guidelines, such as using a qualified PCB manufacturer and following IPC standards, to ensure the device meets the required reliability and quality standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5996CATE+ Overview

Use the download button to access the MAX5996CATE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX59, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
