MAX6125ESA+ - Analog Devices

Description: 3-Pin SOT23 Package (MAX6125/MAX6141/MAX6145/MAX6150)4-Pin SOT143 Package (MAX6160) Low, 200mV Dropout Voltage 75µA Supply Current, Independent of Input Voltage 15ppm/°C Typical Tempco (50ppm/°C, max) Stable for All Capacitive Loads up to 10nF Adjustable Output Voltage from1.23V to (VIN - 0.2V) (MAX6160) Optimized for 3V/5V Operation

Download MAX6125ESA+ Model

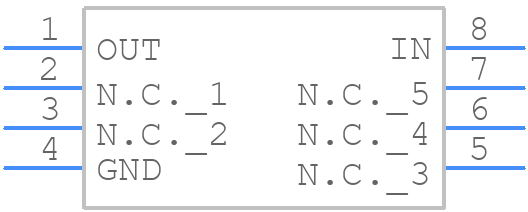

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX6125ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+2
click to zoom
3D Models
MAX6125ESA+ - Analog Devices  - 3D model - Small Outline Packages - S8+2
click to zoom

MAX6125ESA+ Details

  • Manufacturer Part Number:

    MAX6125ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1997-01-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.55 V

  • Output Voltage-Min:

    2.45 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    110 mA

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    50 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.9 mm

MAX6125ESA+ Frequently Asked Questions (FAQs)

  • The MAX6125ESA+ requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and improve stability.
  • The output capacitor value depends on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a value of at least 10uF for every 1A of output current. However, it's recommended to consult the datasheet and perform simulations to determine the optimal capacitor value for your specific application.
  • The MAX6125ESA+ has an absolute maximum input voltage rating of 6V. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V to ensure optimal performance and reliability.
  • The MAX6125ESA+ does not have built-in overvoltage protection. To implement OVP, you can use an external voltage supervisor or a zener diode to clamp the input voltage to a safe level. You can also use a voltage divider network to monitor the input voltage and shut down the device if it exceeds a certain threshold.
  • The thermal derating curve for the MAX6125ESA+ is not explicitly provided in the datasheet. However, you can use the thermal resistance values provided in the datasheet to estimate the junction temperature and derate the device's performance accordingly. It's recommended to consult with Analog Devices' application engineers for more information on thermal derating.
