MAX6126A28+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX6126A28+ - Voltage Reference, Series - Fixed, MAX6126 Series, 2.8V, 0.06 %, ± 2ppm/°C, µMax-8

Download MAX6126A28+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

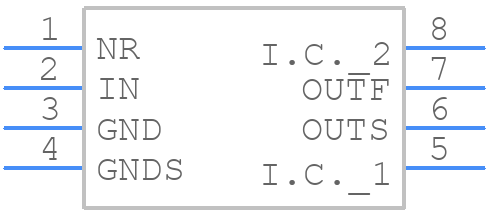

Symbol
MAX6126A28+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6126A28+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8+1
click to zoom
3D Models
MAX6126A28+ - Analog Devices - 3D model - Small Outline Packages - U8+1
click to zoom

MAX6126A28+ Details

  • Manufacturer Part Number:

    MAX6126A28+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    UMAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.01 A

  • Output Voltage-Max:

    2.80168 V

  • Output Voltage-Min:

    2.79832 V

  • Output Voltage-Nom:

    2.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temp Coef of Voltage-Max:

    5 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.06%

  • Width:

    3 mm

MAX6126A28+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6126A28+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure stability, it's crucial to follow the recommended operating conditions, such as input and output voltage ranges, and to use the correct output capacitor value. Additionally, the device should be decoupled from the power supply using a 10uF capacitor, and the input should be bypassed with a 10nF capacitor. It's also important to avoid parasitic inductance and capacitance in the layout.
  • The MAX6126A28+ can deliver up to 500mA of output current. However, the maximum current delivery is dependent on the input voltage, output voltage, and ambient temperature. It's essential to check the device's power dissipation and thermal characteristics to ensure reliable operation.
  • The MAX6126A28+ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to check the device's thermal characteristics and to implement proper thermal management, such as heat sinking and airflow, to ensure reliable operation in high-temperature environments.
  • To troubleshoot issues with the MAX6126A28+, start by checking the input and output voltages, and the device's operating conditions. Verify that the device is properly decoupled and that the layout follows the recommended guidelines. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6126A28+ Overview

Use the download button to access the MAX6126A28+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX61, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
