MAX6126A41+ - Analog Devices

Description: Maxim MAX6126A41+, Series Voltage Reference 4.096V, 0.06% 12.6 V max., 8-Pin μMAX

Download MAX6126A41+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

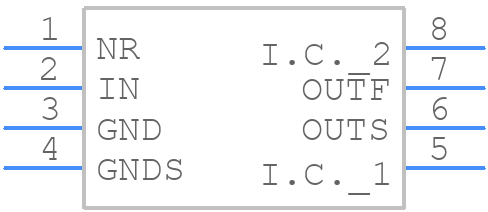

Symbol
MAX6126A41+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6126A41+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8+1
click to zoom
3D Models
MAX6126A41+ - Analog Devices - 3D model - Small Outline Packages - U8+1
click to zoom

MAX6126A41+ Details

  • Manufacturer Part Number:

    MAX6126A41+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    UMAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.01 A

  • Output Voltage-Max:

    4.0985 V

  • Output Voltage-Min:

    4.0935 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    4.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temp Coef of Voltage-Max:

    5 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.06%

  • Width:

    3 mm

MAX6126A41+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6126A41+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The output capacitor should be chosen based on the desired output voltage ripple, output current, and stability requirements. A general rule of thumb is to use a capacitor with a value between 10uF to 47uF, with a low ESR (Equivalent Series Resistance) and a voltage rating that exceeds the output voltage. X5R or X7R ceramic capacitors are good options.
  • The MAX6126A41+ has an absolute maximum input voltage rating of 42V. However, it's recommended to operate the device within the recommended input voltage range of 4.5V to 36V to ensure reliable operation and to prevent damage to the device.
  • The MAX6126A41+ has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the MAX6126A41+, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are correctly sized. Check for signs of overheating, such as excessive temperature or current draw. Use an oscilloscope to check for noise or oscillations on the output. Consult the datasheet and application notes for more detailed troubleshooting guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6126A41+ Overview

Use the download button to access the MAX6126A41+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX61, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
