MAX6126AASA41+T - Analog Devices

Description: Ultra-Low 1.3μVP-P Noise (0.1Hz to 10Hz, 2.048V Output) Ultra-Low 3ppm/°C (max) Temperature Coefficient ±0.02% (max) Initial Accuracy Wide (VOUT + 200mV) to 12.6V Supply Voltage Range Low 200mV (max) Dropout Voltage 380μA Quiescent Supply Current 10mA Sink/Source-Current Capability Stable with CLOAD = 0.1μF to 10μF Low 20ppm/1000hr Long-Term Stability 0.025Ω (max) Load Regulation 20μV/V (max) Line Regulation Force and Sense Outputs for Remote Sensing

Download MAX6126AASA41+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

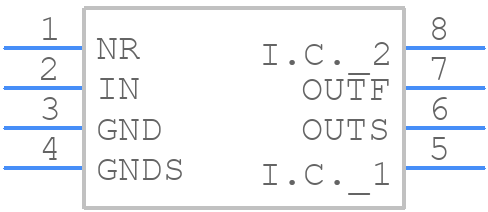

MAX6126AASA41+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6126AASA41+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+4
click to zoom
3D Models
MAX6126AASA41+T - Analog Devices - 3D model - Small Outline Packages - S8+4
click to zoom

MAX6126AASA41+T Details

  • Manufacturer Part Number:

    MAX6126AASA41+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    4.0968 V

  • Output Voltage-Min:

    4.0952 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    4.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temp Coef of Voltage-Max:

    5 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Width:

    3.9 mm

MAX6126AASA41+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6126AASA41+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure stability, it's crucial to follow the recommended component values and layout guidelines. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a low-ESR output capacitor. It's also important to check the device's gain and phase margin using simulation tools or a network analyzer to ensure it's stable across the desired frequency range.
  • The maximum power dissipation of the MAX6126AASA41+T is dependent on the operating conditions, such as the input voltage, output current, and ambient temperature. To calculate the power dissipation, use the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. Ensure the calculated power dissipation is within the device's specified limits to prevent overheating.
  • The MAX6126AASA41+T is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's essential to derate the device's power dissipation and output current according to the temperature derating curves provided in the datasheet. Additionally, ensure the device is properly heatsinked and the PCB is designed to handle high temperatures.
  • To troubleshoot issues with the MAX6126AASA41+T, start by verifying the input voltage, output voltage, and output current are within the specified ranges. Check the PCB layout and component values to ensure they match the recommended values. Use a oscilloscope or a network analyzer to measure the output voltage and current waveforms, and check for any signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
