MAX6126B28+ - Analog Devices

Description: Maxim MAX6126B28+, Series Voltage Reference 2.8V, 0.1% 12.6 V max., 8-Pin μMAX

Download MAX6126B28+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

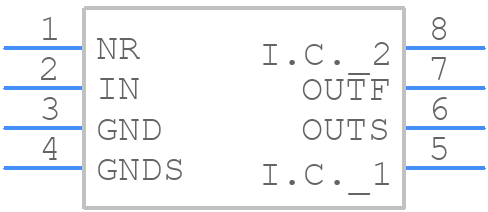

Symbol
MAX6126B28+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6126B28+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8+1
click to zoom
3D Models
MAX6126B28+ - Analog Devices - 3D model - Small Outline Packages - U8+1
click to zoom

MAX6126B28+ Details

  • Manufacturer Part Number:

    MAX6126B28+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    UMAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.01 A

  • Output Voltage-Max:

    2.8028 V

  • Output Voltage-Min:

    2.7972 V

  • Output Voltage-Nom:

    2.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temp Coef of Voltage-Max:

    12 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    3 mm

MAX6126B28+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6126B28+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
  • To ensure stability, make sure to follow the recommended PCB layout, use a low-ESR output capacitor (e.g., X5R or X7R dielectric), and add a 10nF to 100nF capacitor in parallel with the output capacitor to filter out high-frequency noise. Also, ensure that the input voltage is well-regulated and the device is operated within its recommended operating conditions.
  • The maximum input voltage that can be applied to the MAX6126B28+ is 30V. Exceeding this voltage can cause permanent damage to the device. It's recommended to add input voltage protection, such as a voltage clamp or a TVS diode, to prevent overvoltage conditions.
  • The MAX6126B28+ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet. Additionally, ensure that the device is properly heatsinked and the PCB is designed to handle high temperatures.
  • To troubleshoot issues with the MAX6126B28+, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for oscillations or noise on the output. Also, review the PCB layout and ensure that it follows the recommended layout guidelines. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support.
