MAX6126BASA25+ - Analog Devices

Description: Maxim MAX6126BASA25+, Series Voltage Reference 2.5V, ±0.06% 12.6 V max., 8-Pin SOIC

Download MAX6126BASA25+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

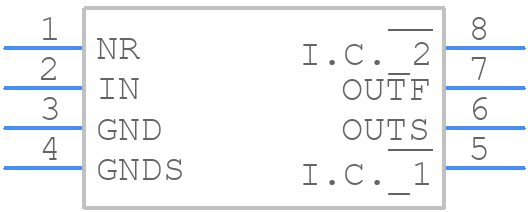

MAX6126BASA25+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6126BASA25+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX6126BASA25+
click to zoom
3D Models
MAX6126BASA25+ - Analog Devices - 3D model - Small Outline Packages - MAX6126BASA25+
click to zoom

MAX6126BASA25+ Details

  • Manufacturer Part Number:

    MAX6126BASA25+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.01 A

  • Output Voltage-Max:

    2.5015 V

  • Output Voltage-Min:

    2.4985 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temp Coef of Voltage-Max:

    10 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.06%

  • Width:

    3.9 mm

MAX6126BASA25+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX6126BASA25+ involves placing the device close to the power source, using a solid ground plane, and keeping the input and output traces short and separate to minimize noise and electromagnetic interference (EMI). A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended PCB layout, use a high-quality output capacitor with low ESR, and add a small ceramic capacitor (e.g., 10nF) between the output and ground pins. Additionally, make sure the input voltage is within the recommended range, and the device is operated within its specified temperature range.
  • The MAX6126BASA25+ can deliver up to 500mA of output current. However, the maximum output current may be limited by the input voltage, output voltage, and the device's thermal performance. It's essential to check the device's thermal performance and ensure that it is operated within its specified temperature range to avoid overheating.
  • The MAX6126BASA25+ is specified to operate from -40°C to +125°C. However, the device's performance and reliability may be affected at high temperatures. It's essential to check the device's thermal performance and ensure that it is operated within its specified temperature range to avoid overheating and ensure reliable operation.
  • To troubleshoot issues with the MAX6126BASA25+, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within its specified temperature range and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for further guidance or contact Analog Devices' technical support.
