MAX6150EUR+T - Analog Devices

Description: 3-Pin SOT23 Package (MAX6125/MAX6141/MAX6145/MAX6150)4-Pin SOT143 Package (MAX6160) Low, 200mV Dropout Voltage 75µA Supply Current, Independent of Input Voltage 15ppm/°C Typical Tempco (50ppm/°C, max) Stable for All Capacitive Loads up to 10nF Adjustable Output Voltage from1.23V to (VIN - 0.2V) (MAX6160) Optimized for 3V/5V Operation

Download MAX6150EUR+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

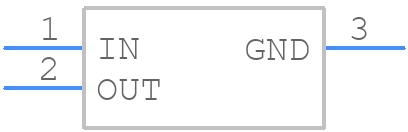

MAX6150EUR+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6150EUR+T - Analog Devices PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - 3L SOT-23_2023-1
click to zoom
3D Models
MAX6150EUR+T - Analog Devices - 3D model - SOT23 (3-Pin) - 3L SOT-23_2023-1
click to zoom

MAX6150EUR+T Details

  • Manufacturer Part Number:

    MAX6150EUR+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    3-SOT_23-N/A

  • Package Description:

    TSSOP, TO-236

  • Pin Count:

    3

  • Manufacturer Package Code:

    3-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1997-01-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Length:

    2.92 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TO-236

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.12 mm

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    5.2 V

  • Supply Voltage-Nom (Vsup):

    5.2 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    50 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    2%

  • Width:

    1.3 mm
