MAX6164AESA+ - Analog Devices

Description: MAX6164AESA+, Precision Voltage Reference 4.096V ±2mV 5mA 12.6 V max. 8-Pin SO

Download MAX6164AESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

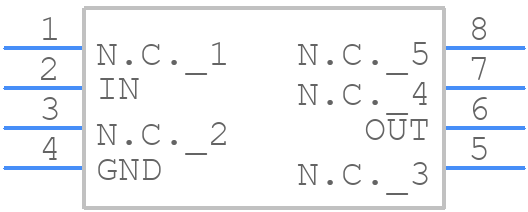

MAX6164AESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6164AESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-3
click to zoom
3D Models
MAX6164AESA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO-3
click to zoom

MAX6164AESA+ Details

  • Manufacturer Part Number:

    MAX6164AESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    4.098 V

  • Output Voltage-Min:

    4.094 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    4.296 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temp Coef of Voltage-Max:

    5 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Width:

    3.9 mm

MAX6164AESA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6164AESA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The output capacitor selection for the MAX6164AESA+ depends on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a value between 10uF to 47uF, with a voltage rating of at least 2x the output voltage. The capacitor's ESR (Equivalent Series Resistance) should be low, typically < 0.1 ohms. It's also important to consider the capacitor's temperature rating and ripple current capability.
  • The MAX6164AESA+ has an absolute maximum input voltage rating of 18V. However, the recommended input voltage range is 4.5V to 16V. Operating the device beyond the recommended range may affect its performance, reliability, and lifespan.
  • The MAX6164AESA+ has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the device's thermal characteristics, such as junction temperature and thermal resistance, when designing for high-temperature applications. Additionally, ensure that the device is properly heatsinked and follow the recommended thermal design guidelines.
  • To troubleshoot issues with the MAX6164AESA+, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to inspect the output voltage ripple and noise. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid. If the issue persists, contact Analog Devices' technical support for further assistance.
