MAX618EEE+ - Analog Devices

Description: MAX618EEE+, DC-DC Converter, 500mA Adjustable, 3 → 28 V, Step Up, 0.312 MHz, 16-Pin QSOP

Download MAX618EEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

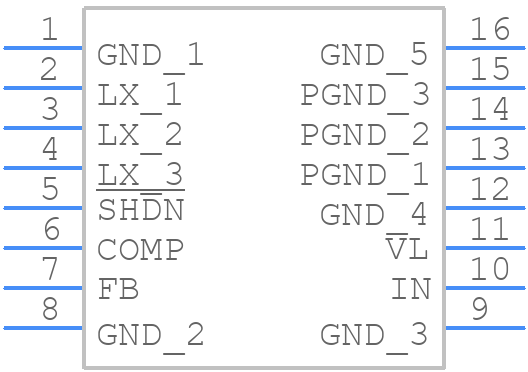

MAX618EEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX618EEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16+1
click to zoom
3D Models
MAX618EEE+ - Analog Devices - 3D model - Small Outline Packages - E16+1
click to zoom

MAX618EEE+ Details

  • Manufacturer Part Number:

    MAX618EEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-06-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO HAS ADJUSTABLE OUTPUT VOLTAGE UP TO 28V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    28 V

  • Output Voltage-Nom:

    3.05 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    7.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    312 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX618EEE+ Frequently Asked Questions (FAQs)

  • The MAX618EEE+ is a high-frequency device and requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device.
  • The output capacitor value for the MAX618EEE+ depends on the specific application and requirements. A general rule of thumb is to choose a capacitor with a value between 10uF to 100uF, with a low ESR (Equivalent Series Resistance) and a voltage rating that matches the output voltage of the device. It is also important to consider the capacitor's physical size, temperature rating, and reliability.
  • The MAX618EEE+ has an absolute maximum input voltage rating of 6V, but it is recommended to operate the device within the specified input voltage range of 2.7V to 5.5V to ensure optimal performance and reliability.
  • The MAX618EEE+ is rated for operation up to 125°C, but it is recommended to derate the device's performance and reliability at high temperatures. It is also important to consider the thermal management and cooling requirements for the device in high-temperature environments.
  • To troubleshoot issues with the MAX618EEE+, it is recommended to follow a systematic approach, including checking the device's input and output voltages, verifying the correct operation of the enable and shutdown pins, and checking for any signs of overheating or physical damage. It is also important to consult the datasheet and application notes for specific troubleshooting guidelines.
