MAX618EEE+T - Analog Devices

Description: 28V, PWM, Step-Up DC-DC Converter

Download MAX618EEE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

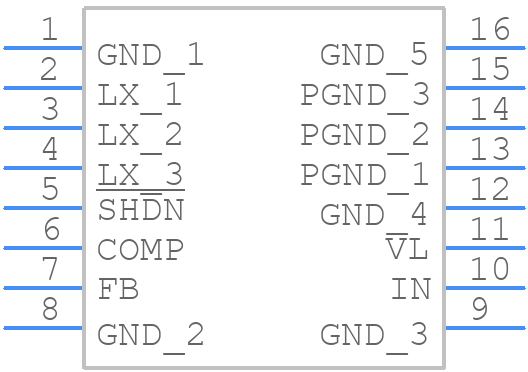

MAX618EEE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX618EEE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 QSOP
click to zoom
3D Models
MAX618EEE+T - Analog Devices - 3D model - Small Outline Packages - 16 QSOP
click to zoom

MAX618EEE+T Details

  • Manufacturer Part Number:

    MAX618EEE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    SSOP, SSOP16,.25

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-06-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    28 V

  • Output Voltage-Nom:

    3.05 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Supply Current-Max (Isup):

    7.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    312 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX618EEE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX618EEE+T involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output capacitor and to keep the feedback resistors close to the device.
  • To ensure stability, make sure the output capacitor is properly sized and placed, and the feedback resistors are correctly chosen. Also, check that the input and output voltages are within the recommended operating range, and the device is not operated in a region where the output impedance is high.
  • The MAX618EEE+T can drive a maximum capacitive load of 10uF. Exceeding this limit may cause instability or oscillation. If a larger capacitive load is required, consider adding a series resistor to dampen the load.
  • To protect the MAX618EEE+T from overvoltage and overcurrent conditions, consider adding overvoltage protection (OVP) and overcurrent protection (OCP) circuits. OVP can be achieved using a voltage clamp or a zener diode, while OCP can be achieved using a current sense resistor and a comparator.
  • The thermal derating of the MAX618EEE+T is typically around 1.5°C/W. As the device temperature increases, the performance may degrade, and the output voltage may drop. To minimize thermal derating, ensure good airflow, use a heat sink if necessary, and avoid operating the device at high ambient temperatures.
